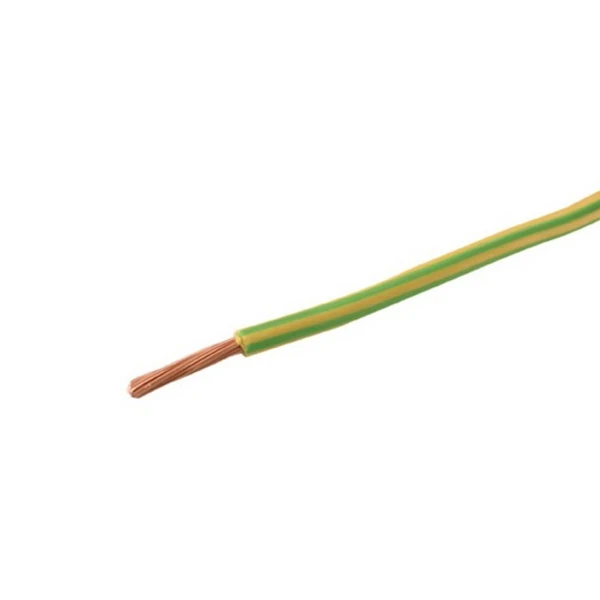

6491X 50.0mm² Green/Yellow PVC Basec Cable 1-Core 1m
6491X 50.0mm² Green/Yellow PVC Basec Cable 1-Core 1m
6491X 50.0mm² Green/Yellow PVC Basec Cable 1-Core 1m - Image 2
6491X 50.0mm² Green/Yellow PVC Basec Cable 1-Core 1m - Image 3
6491X 50.0mm² Green/Yellow PVC Basec Cable 1-Core 1m - Image 4

6491X 50.0mm² Green/Yellow PVC Basec Cable 1-Core 1m

£14.22 Incl. VAT

This product is cut to specification. Hence when ordering, a mutiple of 1 needs to be entered. Wiring Cable is a PVC insulated single core, low voltage copper wiring cable. Designed for installation within enclosed, protected environments or without mechanical protection for green/yellow earth cable. Particularly suitable for wiring systems the cable is easily drawn into conduit and trunking used for lighting and power circuits indoors or outdoors. · · · Cable Size: 50.0mm² · · Colour: Green/Yellow · · Length in metres: 1 · · No. of cores: 1 · · Product Packaging: Cut · · Material: PVC · · Standard: BS EN 50525-2-31

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-50.0-G/Y1 CABLE-RX Categories: , , Brand: Part Number: 1050299878

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Core identification Colour Core colour Green/yellow Conductor surface Bare Nominal cross sectional area of conductor 50 mm² Conductor Diameter 50 mm Min. permitted bending radius, stationary application/permanent installation 68 mm Outer diameter approx. 11.2 mm Max. conductor temperature 70 °C Nominal voltage U0 450 V Nominal voltage U 750 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
