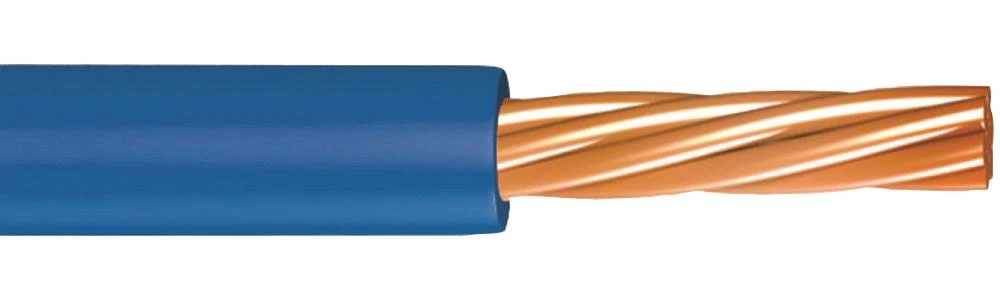

6491X 50.0mm Blue PVC Basec Cable 1-Core 1m
6491X 50.0mm Blue PVC Basec Cable 1-Core 1m
6491X 50.0mm Blue PVC Basec Cable 1-Core 1m - Image 2
6491X 50.0mm Blue PVC Basec Cable 1-Core 1m - Image 3
6491X 50.0mm Blue PVC Basec Cable 1-Core 1m - Image 4

6491X 50.0mm Blue PVC Basec Cable 1-Core 1m

£14.22 Incl. VAT

This product is cut to specification. Hence when ordering, a mutiple of 1 needs to be entered. Wiring Cable is a PVC insulated single core, low voltage copper wiring cable. Designed for installation within enclosed, protected environments or without mechanical protection for blue earth cable. Particularly suitable for wiring systems the cable is easily drawn into conduit and trunking used for lighting and power circuits indoors or outdoors. · · · Cable Size: 50.0mm · · Colour: Blue · · Length in metres: 1 · · No. of cores: 1

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6491X-50.0-BLU1 CABLE-RX Categories: , , Brand: Part Number: 1050390933

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 2 = stranded Conductor material Copper Core insulation material Polyvinyl chloride (PVC) Core colour Green/yellow Core identification Colour Conductor surface Bare Nominal cross sectional area of conductor 50 mm² Outer diameter approx. 11.2 mm Min. permitted bending radius, stationary application/permanent installation 68 mm Max. conductor temperature 70 °C Conductor Diameter 50 mm Nominal voltage U0 450 V Nominal voltage U 750 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
