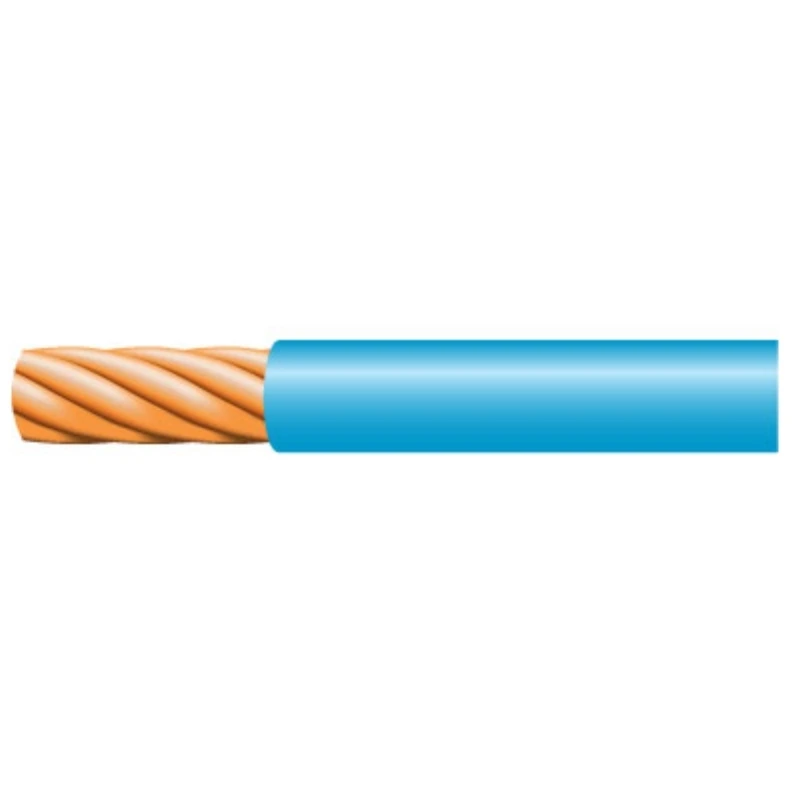

6491X 6.0mm² Blue PVC Basec Cable 1-Core 100m Roll
6491X 6.0mm² Blue PVC Basec Cable 1-Core 100m Roll
6491X 6.0mm² Blue PVC Basec Cable 1-Core 100m Roll - Image 2
6491X 6.0mm² Blue PVC Basec Cable 1-Core 100m Roll - Image 3

6491X 6.0mm² Blue PVC Basec Cable 1-Core 100m Roll

£146.88 Incl. VAT

Prysmian 6491X is a single core, low voltage wiring cable designed for installation within conduit, trunking or inside fixed protected environments · · · Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation · · Green/Yellow for use as earth can be installed without mechanical protection. · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

Minimum order: 100 units.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20145277 Categories: , , Brand: Part Number: 2500019585

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Core colour Blue Sheath colour Blue Conductor material Copper Conductor category Class 2 = stranded Nominal voltage U0 450 V Number of cores 1 Nominal voltage U 750 V Conductor Diameter 6 mm Nominal cross sectional area of conductor 6 mm² Core identification Colour Conductor surface Bare Core insulation material Polyvinyl chloride (PVC) Max. conductor temperature 70 °C Outer diameter approx. 4.7 mm Min. permitted bending radius, stationary application/permanent installation 29 mm Permitted cable outer temperature during assembling/handling 0 - 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
