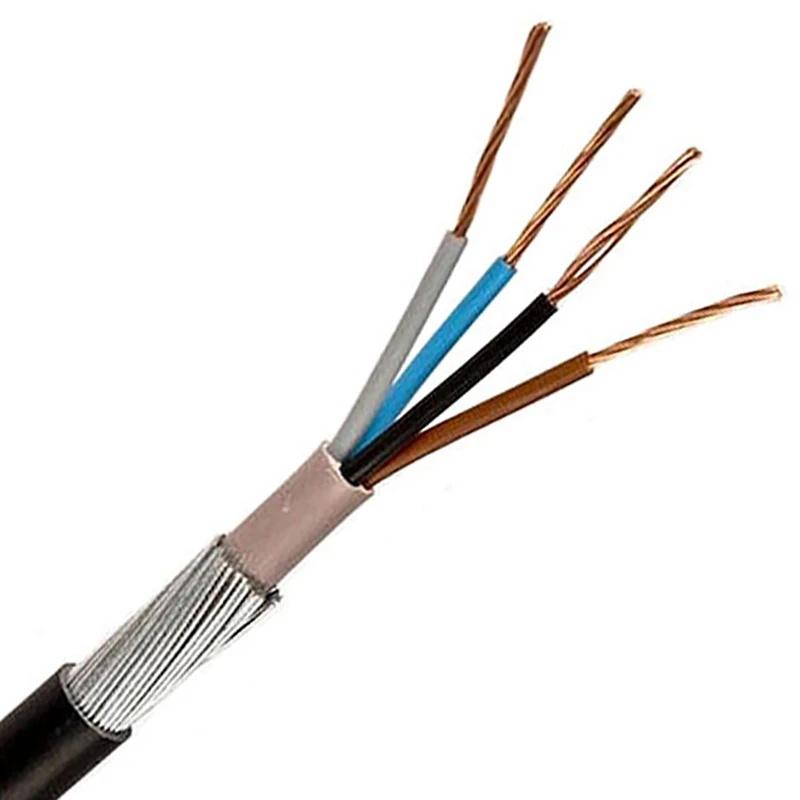

Commodity 6944LSH 1.5mm² Black XLPE/SWA/Basec Cable 4-Core 1m
£3.34 Incl. VAT
This product is cut to specification. Hence when ordering, a mutiple of 1 needs to be entered. 6944LSH 1.5mm Black 4-Core Cut XLPE/SWA/LSF BASEC · · · Cable Size: 1.5mm² · · Colour: Black · · Length in metres: 1 · · No. of cores: 4 · · Product Packaging: Cut · · Low Smoke Zero Halogen · · Standard: BS6724
Description
Technical Specifications Technical Specifications Power cable >= 1 kV, for fixed installations Conductor category Class 2 = stranded Concentric conductor None Shape of conductor Round Conductor material Copper Conductor surface Bare Sheath material Polyolefin Sheath colour Black Core identification Colour Core insulation material Polyolefin Nominal voltage U 1000 kV Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U0 600 kV Number of cores 4 Max. conductor temperature 90 °C Outer diameter approx. 11.9 mm Permitted cable outer temperature during assembling/handling 0 – 80 °C Lead sheath No Screen No Halogen free according to IEC 60754-2 No
