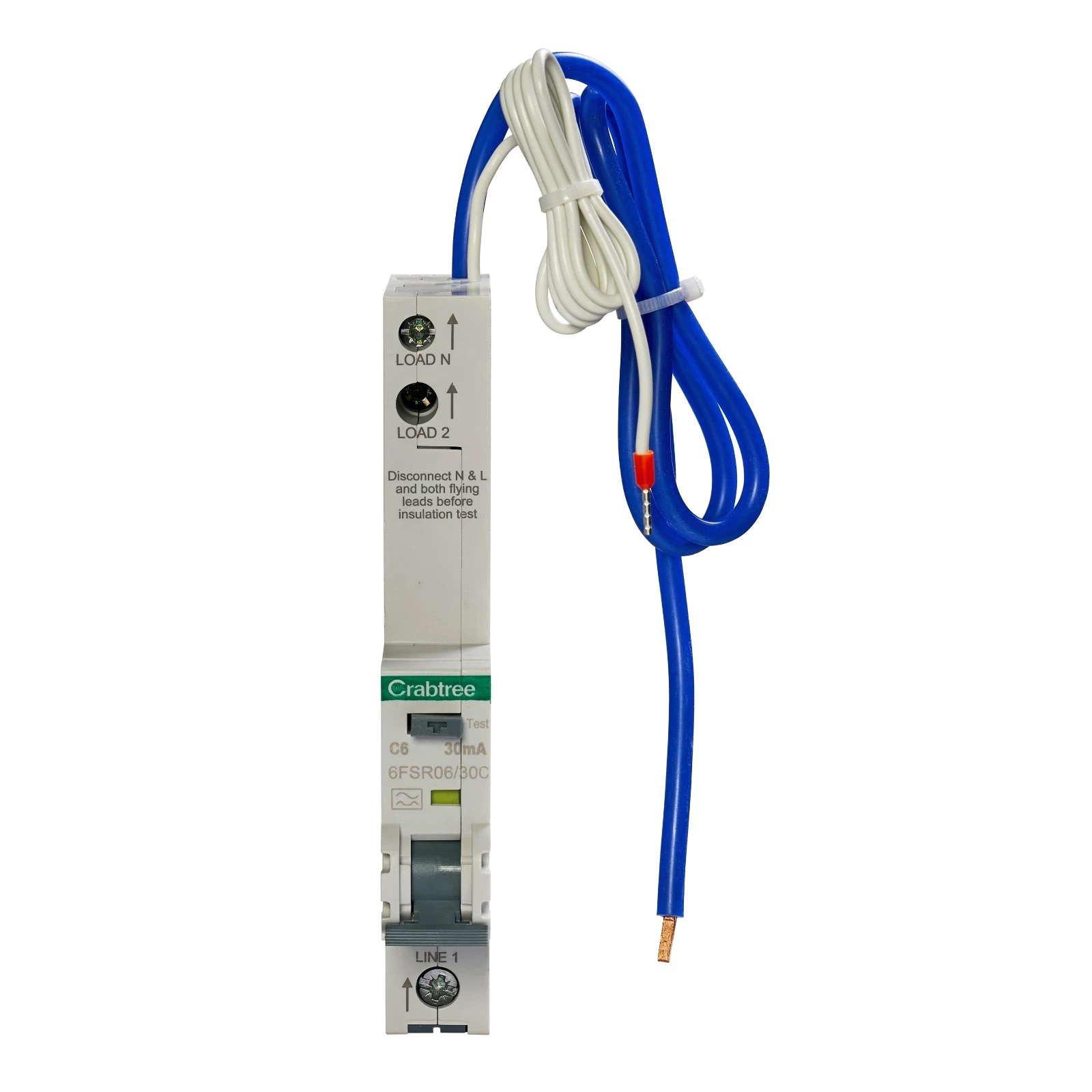

6A 30mA SPN C Curve 6kA Type A RCBO
6A 30mA SPN C Curve 6kA Type A RCBO

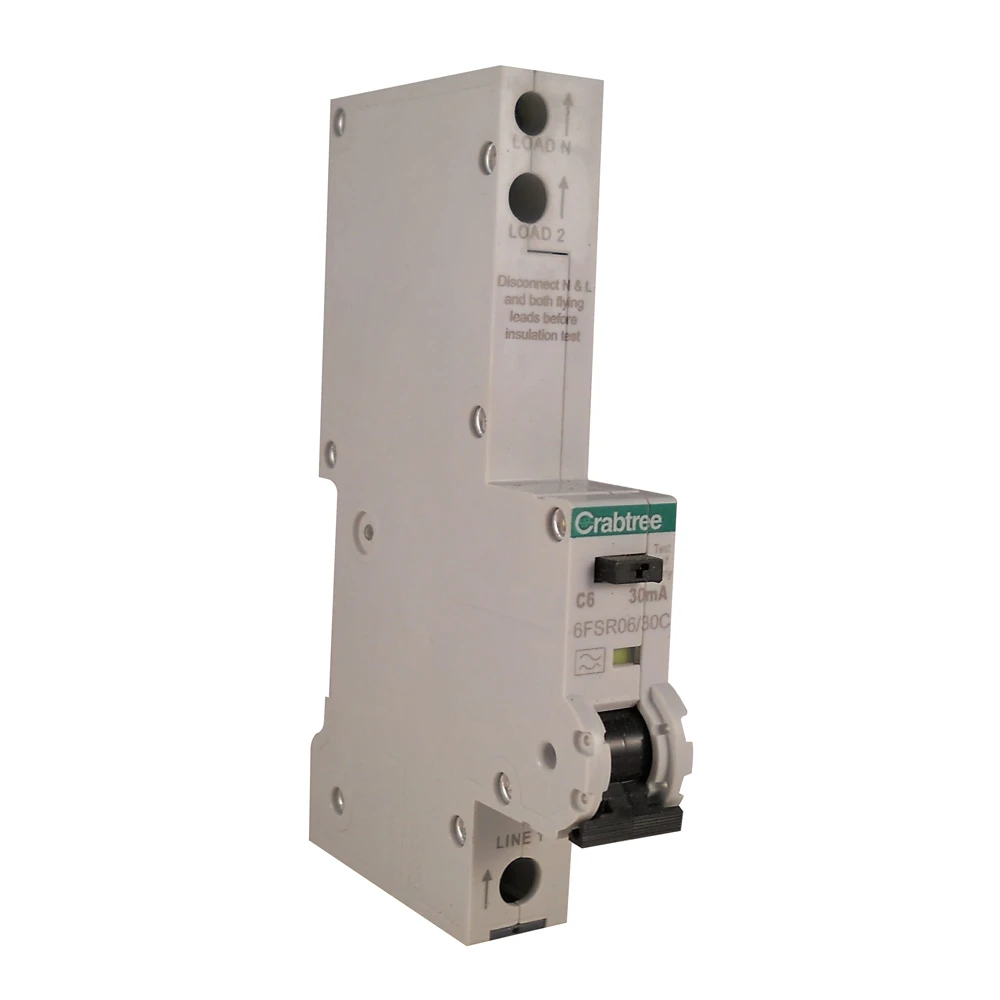

6A 30mA SPN C Curve 6kA Type A RCBO - Image 2
6A 30mA SPN C Curve 6kA Type A RCBO - Image 3

6A 30mA SPN C Curve 6kA Type A RCBO

£122.86 Incl. VAT

Crabtree Loadstar RCBO is a single pole, 30mA trip current and c-curve. It has 16mm² terminal capacity (outgoing) for consumer unit. · · · Single module, RCBO · · 6A C curve (MCB), 30mA Type A (RCD) · · Single pole · · 16mm² terminal capacity (outgoing)

4 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6FSR06/30C Categories: , , Brand: Part Number: 2500087539

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Tripping characteristic (type/curve) C Rated current 6 A Width in number of modular spacings 1 Rated voltage 230 V Recess depth 74 mm Current limiting class 3 Number of protected poles 1 Rated insulation voltage Ui 400 V Over voltage category 3 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 2 Rated fault current 0.03 A Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Anti-nuisance tripping version No Flush-mounted installation No With interlocking device No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
