6A 30mA SPswN C Curve 6kA Type A Miniature RCBO
6A 30mA SPswN C Curve 6kA Type A Miniature RCBO

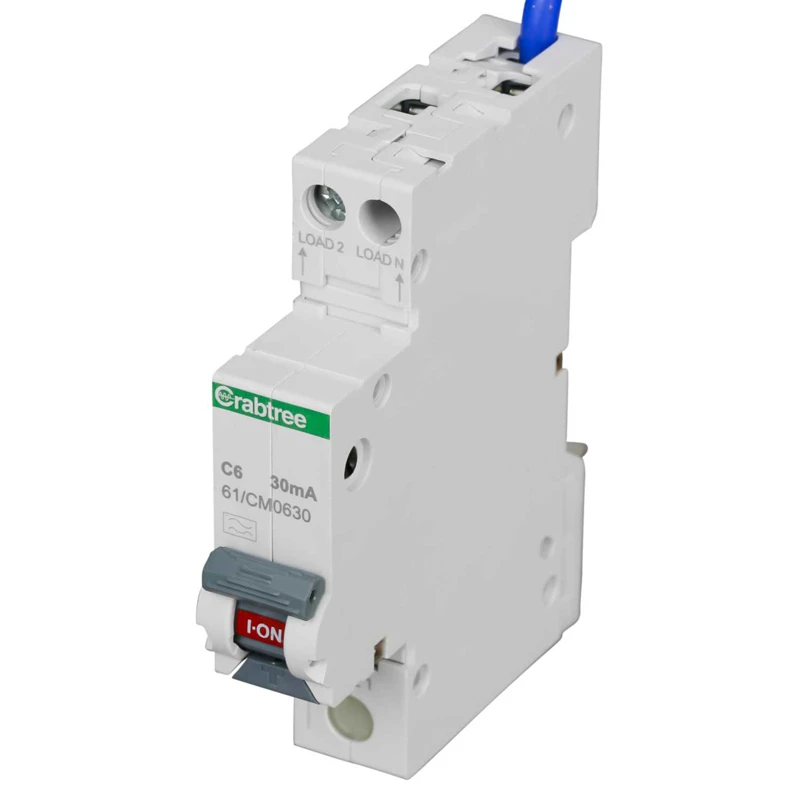

6A 30mA SPswN C Curve 6kA Type A Miniature RCBO - Image 2

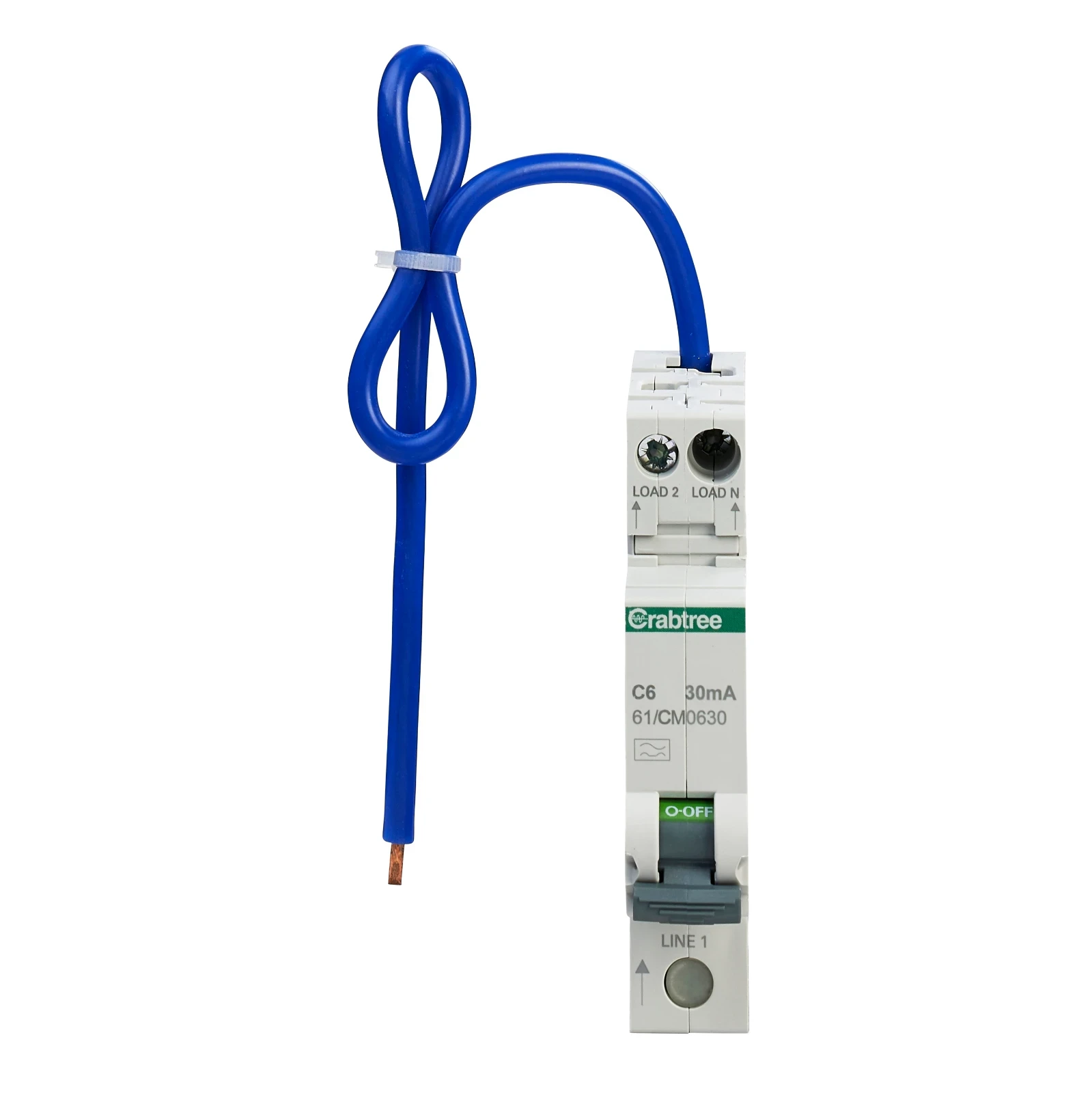

6A 30mA SPswN C Curve 6kA Type A Miniature RCBO - Image 3

6A 30mA SPswN C Curve 6kA Type A Miniature RCBO

£37.90 Incl. VAT

Crabtree Starbreaker Miniature Residual Current Circuit Breaker with overcurrent protection (RCBO) brings higher levels of safety to an electrical installation and its users because it includes switched neutral as standard and bring cost savings by reducing installation and testing times. This Starbreaker plug in, MCB sized RCBO is ideal for domestic household premises and similar installations. Starbreaker Miniature RCBO with switched neutral built in as standard will fully isolate a faulty or damaged circuit by disconnecting live and neutral conductors. This takes up less space in the consumer unit and so provide more wiring space for the installer, making the installation process easier and quicker. Using Starbreaker Miniature RCBO will guarantee that healthy circuits remain in service and that only a faulty circuit is switched off. This avoids danger and prevents inconvenience in the event of a fault. · · · Single module, Miniature RCBO · · 6A C curve (MCB), 30mA Type A (RCD) · · Single pole with switched neutral · · Plug in · · Neutral conductor switching

1 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 61/CM0630 Categories: , , Brand: Part Number: 2501074763

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) C Recess depth 73 mm Mounting method DIN rail Rated voltage 230 V Rated current 6 A Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Connectable conductor cross section solid-core 0.75 – 16 mm² Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated insulation voltage Ui 400 V Rated fault current 0.03 A Number of protected poles 1 Number of poles (total) 2 Width in number of modular spacings 1 Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Anti-nuisance tripping version No Flush-mounted installation No Concurrently switching N-neutral Yes With interlocking device No · Technical Data Sheet – Click to Download
