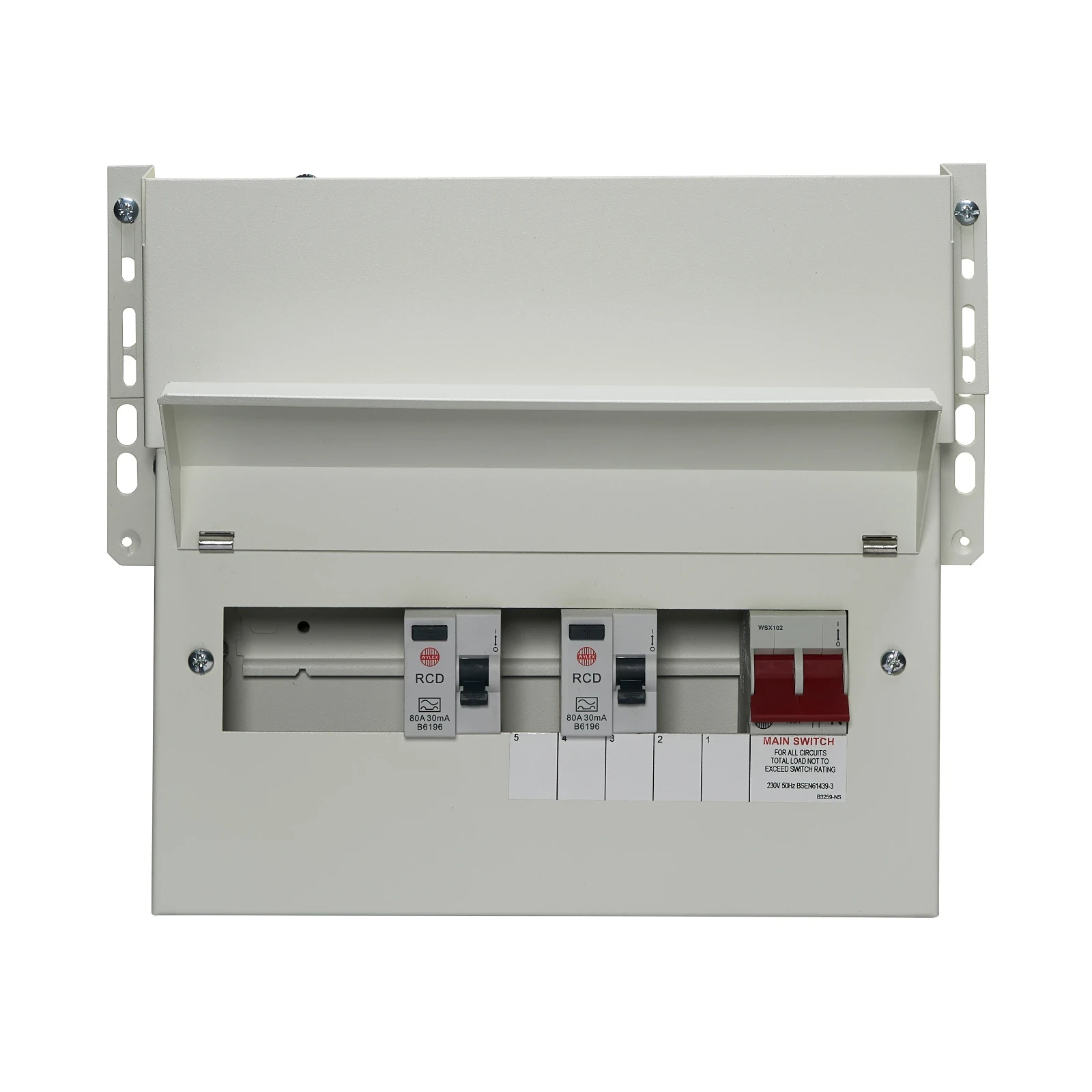

Wylex 7 Way Dual RCD Meter Cabinet Consumer Unit 100A Main Switch, 80A 30mA RCDs, Flexible Configuration

SKU: FALNMISS7SLMAGo Magpie ID: 5060062361428

Meter Cabinet Consumer Units Metal Cased “Skeleton” For Mantel, Clifton & Other Meter Cabinets · · · All metal meter cabinet consumer unit · · Flexible busbar assembly · · 7W Dual RCD · · 320mm fixing centres · · 2x 80A 30mA type A RCCB · · Cable entry knockouts on top, bottom and rear elevations · · Top hinged self-closing door · · RoHS compliant in excess of UK standards · · UKAS certified to BS EN 61439-3

£217.34inc VAT£181.12 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board equipped Width 335 mm Width in number of modular spacings 13 Main switch rated current 100 A Number of phases 1 Number of poles main switch 2 Total number of groups 2 Depth 119 mm Height 257 mm Lockable No Extension possible No With transparent cover No Over voltage-/surge protection No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
