75kW/400V 1No+1Nc 24Vdc 3P Screw Terminal
£116.99 Incl. VAT

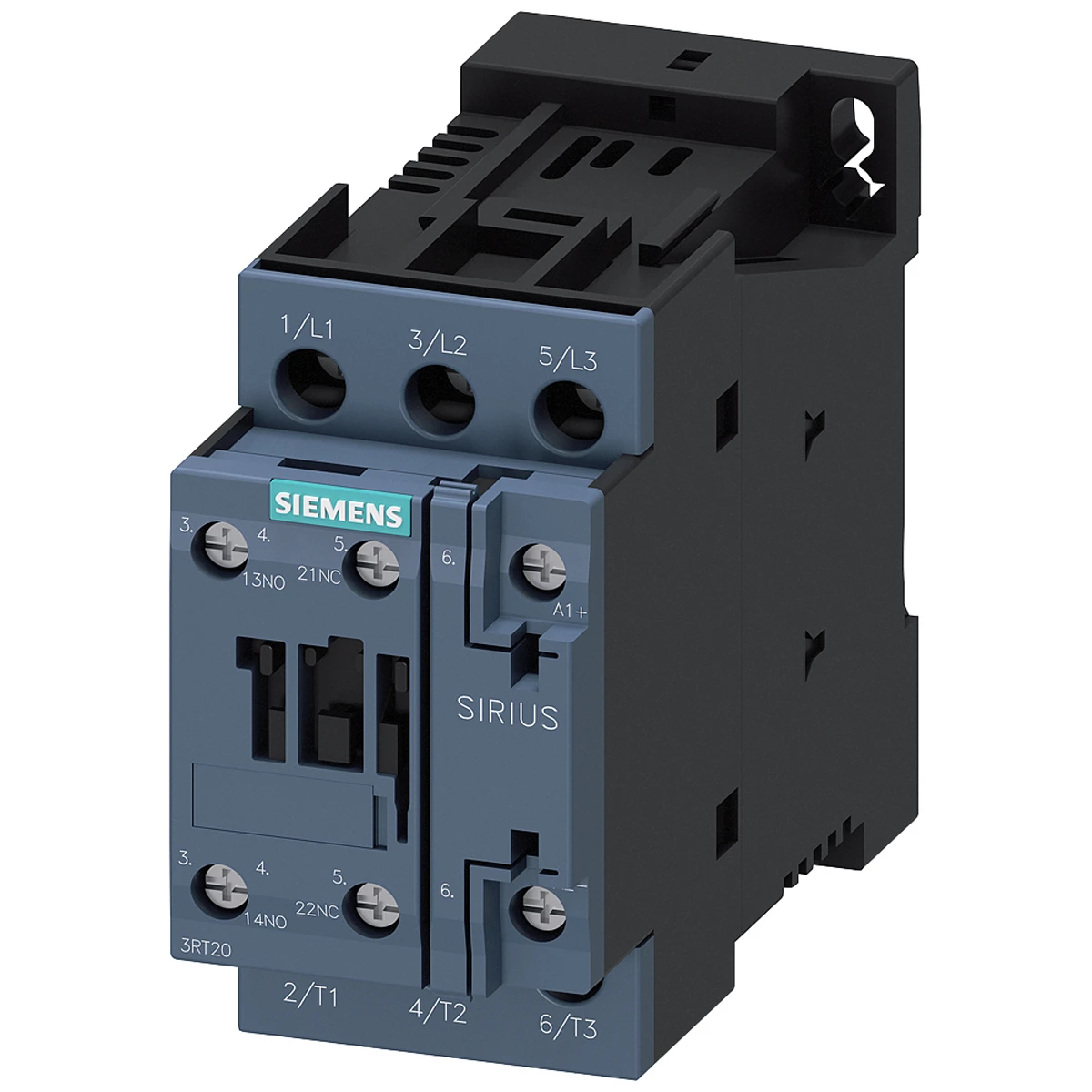

Siemens size S0 power contactor with 1NO + 1NC auxiliary contact. Contactor can be rotated +/-180° and be tilted forward/backward +/- 22.5° when on vertical mounting surface. · · · Control supply voltage: 24V DC · · Operating current: 17A (at 400V rated value) · · Operating power: 7.5kW (at 400V rated value) · · Screw clamp terminals: 2x (1 – 2.5mm²), 2 x (2.5 – 10mm²) · · Mounting type: Screw/Snap-on mounting onto 35mm standard rail · · Operating voltage: 690V AC · · Opening/closing delay: 15-17.5ms/ 50-170ms · · Mechanical service life: 10000000 cycles · · Ambient operating temperature: -25°C to 60°C · · IP20 Degree of protection
Out of stock
Description
Technical Specifications Technical Specifications Power contactor, AC switching Voltage type for actuating DC Type of electrical connection of main circuit Screw connection Number of main contacts as normally open contact 3 Number of auxiliary contacts as normally open contact 1 Rated operation power at AC-3, 400 V 7.5 kW Rated operation current Ie at AC-4, 400 V 15.5 A Rated operation current Ie at AC-1, 400 V 40 A Rated operation power NEMA 7.35499 kW Rated operation current Ie at AC-3, 400 V 17 A Number of auxiliary contacts as normally closed contact 1 Rated control supply voltage at DC 24 – 24 V Modular version Yes · Technical Data Sheet – Click to Download
