8 Inputs 4 Outputs Moeller Series EASY Control Relay
8 Inputs 4 Outputs Moeller Series EASY Control Relay

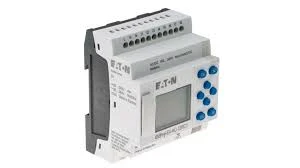

8 Inputs 4 Outputs Moeller Series EASY Control Relay - Image 2

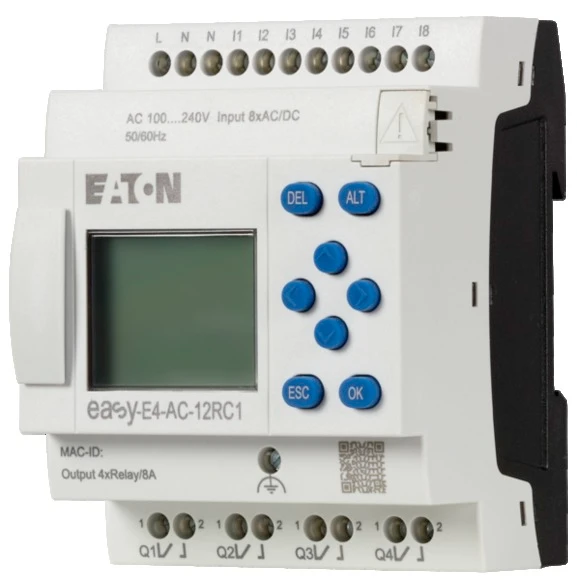

8 Inputs 4 Outputs Moeller Series EASY Control Relay - Image 3

8 Inputs 4 Outputs Moeller Series EASY Control Relay

£231.95 Incl. VAT

The easyE4 control relay from Eaton’s Moeller series is ideally suited for implementing the control and regulation of various applications efficiently, flexibly and simply. The device series offers a wide range of communication options via the integrated Ethernet interface featuring the functions of a mini PLC for machine and system control. With the integrated Modbus TCP client and server functionality of the easyE4, components of different levels can be integrated. The communication modules for Modbus RTU and SmartWire-DT make the easyE4 to Eaton’s smart relay enabling the monitoring of your machine and system. Thanks to the flexible expansion of the base devices with up to 11 I/O modules and the wide range of voltages (AC, DC, UC), the easyE4 is ideally suited for applications in industry as well as in the building sector. In addition to the simple handling, programming the easyE4 devices is also very easy. The intuitive easySoft software offers users four programming languages. easyE4 also offers a wide range of visualization options – whether on mobile devices thanks to the integrated web server or on industrial displays. Many other functions make the easyE4 a powerful micro controller that can also be integrated into IoT system architectures. · · · Base devices and expansion modules available in DC, AC and UC voltages · · 12/24 V DC, 24 V AC and 100-240 V AC/DC versions · · Up to 11 local I/O expansion modules per base device · · Various visualization options: integrated display at the base device, easy Remote Touch Display and easy XV100 touch display · · Flexible auxiliaries combination with a simple clip-on system · · Consistent with the entire Acti 9 offer · · Compliance with standards: EN 61095 and CEI 1095 · · Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B · · The maximum switching operations is 6 per minute. · · The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EASY-E4-AC-12RC1 Categories: , , Brand: Part Number: 2501357159

Description

Technical Specifications  Technical Specifications Logic module Explosion safety category for dust None Performance level acc. to EN ISO 13849-1 None Explosion safety category for gas None SIL according to IEC 61508 None Degree of protection (IP rating) IP20 Voltage type of supply voltage AC Width 72 mm Height 90 mm Number of HW-interfaces Wireless 0 Number of HW-interfaces PROFINET 0 Number of HW-interfaces industrial Ethernet 1 Number of HW-interfaces RS-232 0 Number of HW-interfaces RS-422 0 Number of HW-interfaces RS-485 0 Number of HW-interfaces serial TTY 0 Number of HW-interfaces USB 0 Number of HW-interfaces parallel 0 Number of HW-interfaces other 0 Number of digital outputs 4 Number of analogue inputs 0 Supply voltage AC 60 Hz 85 – 264 V Supply voltage AC 50 Hz 85 – 264 V Depth 58 mm Switching current 8 A Power consumption 4 W Number of digital inputs 8 Number of analogue outputs 0 Supply voltage DC 85 – 264 V Suitable for safety functions No Expandable Yes With timer Yes Display Yes Wall mounting/direct mounting Yes Radio standard Bluetooth No IO link master No Supporting protocol for PROFINET CBA No Supporting protocol for PROFINET IO No Supporting protocol for SERCOS No Supporting protocol for INTERBUS-Safety No Redundancy No With relay output Yes Radio standard WLAN 802.11 No Rail mounting possible Yes Supporting protocol for Foundation Fieldbus No Supporting protocol for EtherNet/IP No Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for PROFIBUS No Supporting protocol for TCP/IP Yes Supporting protocol for ASI No Supporting protocol for CAN No With optical interface No Supporting protocol for LON No Supporting protocol for DeviceNet No Supporting protocol for SUCONET No Supporting protocol for other bus systems No Supporting protocol for INTERBUS No Supporting protocol for KNX No Certified for UL hazardous location group B (hydrogen) No Basic device Yes Supporting protocol for EtherCAT No Front built-in possible Yes Rack-assembly possible No Supporting protocol for MODBUS Yes Supporting protocol for Data-Highway No Certified for UL hazardous location class I Yes Certified for UL hazardous location group A (acetylene) Yes Certified for UL hazardous location division 2 Yes Appendant operation agent (Ex ia) No Expansion device No Radio standard UMTS No Certified for UL hazardous location class II No Certified for UL hazardous location class III No Certified for UL hazardous location division 1 No Appendant operation agent (Ex ib) No Radio standard GSM No Radio standard GPRS No Supporting protocol for SafetyBUS p No Supporting protocol for PROFIsafe No Certified for UL hazardous location group F (carbonaceous dusts) No Certified for UL hazardous location group E (metal dusts) No Certified for UL hazardous location group D (propane) Yes Certified for UL hazardous location group C (ethylene) Yes Certified for UL hazardous location group G (non-conductive dusts) No · Technical Data Sheet – Click to Download
