Cembre A-4ESI Crimping Lug 500mm² 4-Hole 139mm X 61mm 10/Pack
Cembre A-4ESI Crimping Lug 500mm² 4-Hole 139mm X 61mm 10/Pack
Cembre A-4ESI Crimping Lug 500mm² 4-Hole 139mm X 61mm 10/Pack - Image 2
Cembre A-4ESI Crimping Lug 500mm² 4-Hole 139mm X 61mm 10/Pack - Image 3
Cembre A-4ESI Crimping Lug 500mm² 4-Hole 139mm X 61mm 10/Pack - Image 4

Cembre A-4ESI Crimping Lug 500mm² 4-Hole 139mm X 61mm 10/Pack

£53.11 Incl. VAT

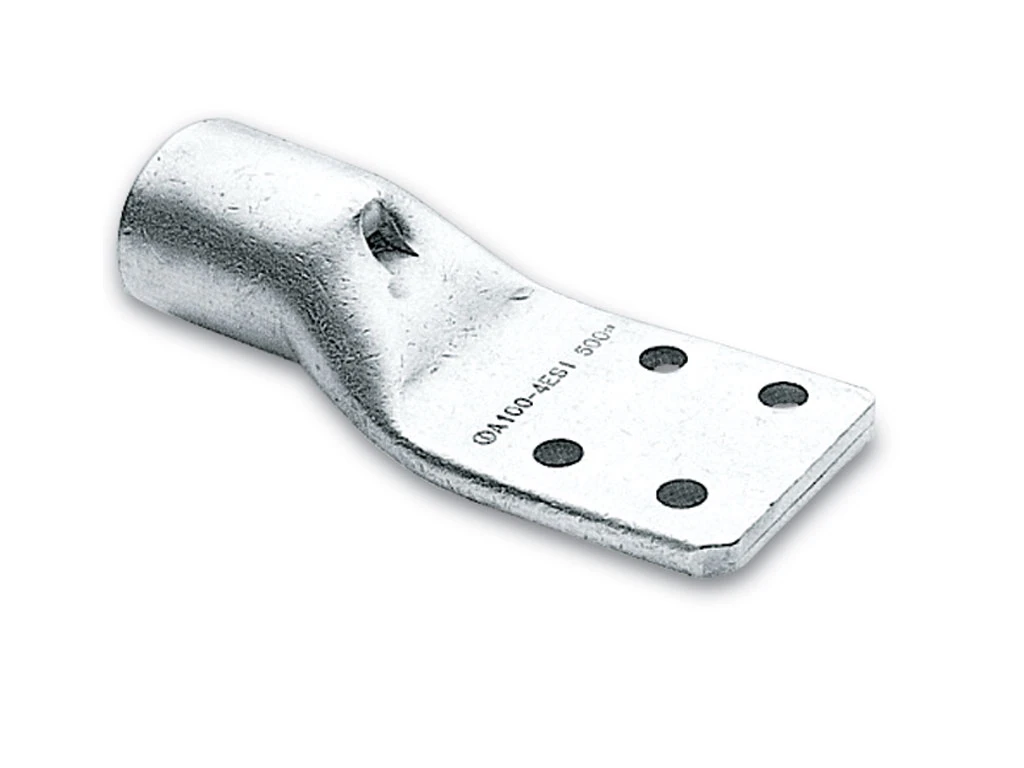

500mm² Copper tube crimping lug with 4-ESI fixing · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Four hole stud fixing in accordance with EA specifications

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A100-4ESI Categories: , , Brand: Product Code: 2500025525

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Flange shape Special shape Connecting angle 180° (horizontal) Material Copper Conductor category Class 5 = flexible Nominal cross section 500 mm² Surface protection Tinned Number of fixing holes 4 Bolt dimension (metric) 8 Slender flange model No With sight-hole Yes Insulated No · Technical Data Sheet – Click to Download
