Cembre 300mm² Copper lug contained M12 [Pack of 10]
£29.58 Incl. VAT

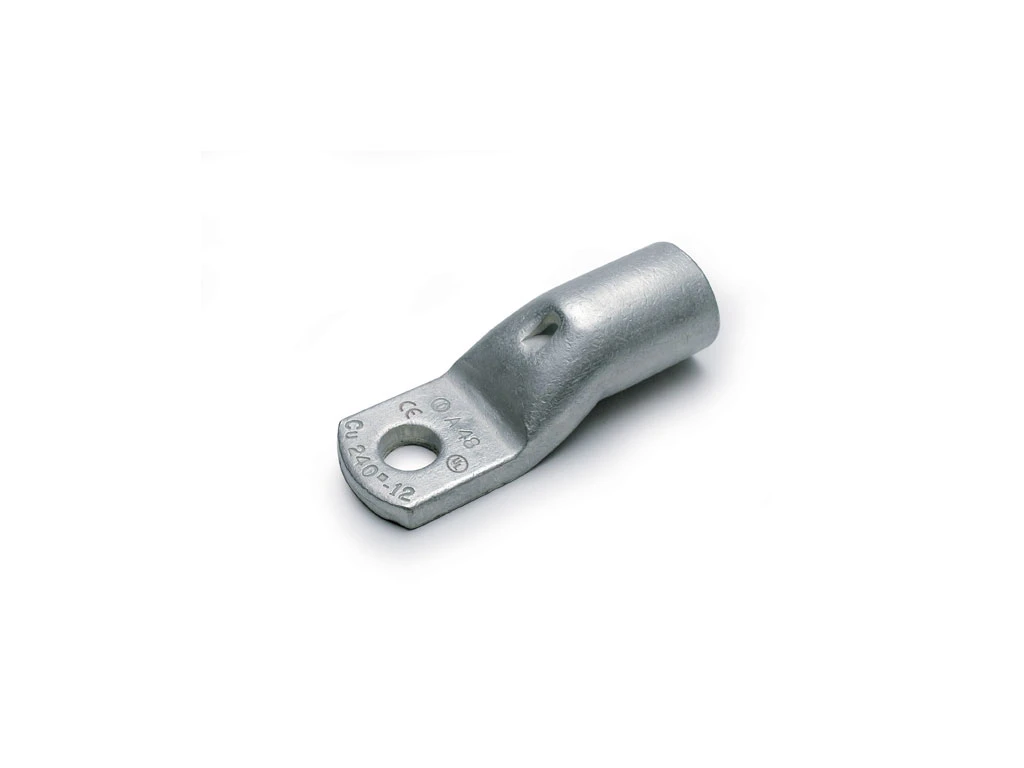

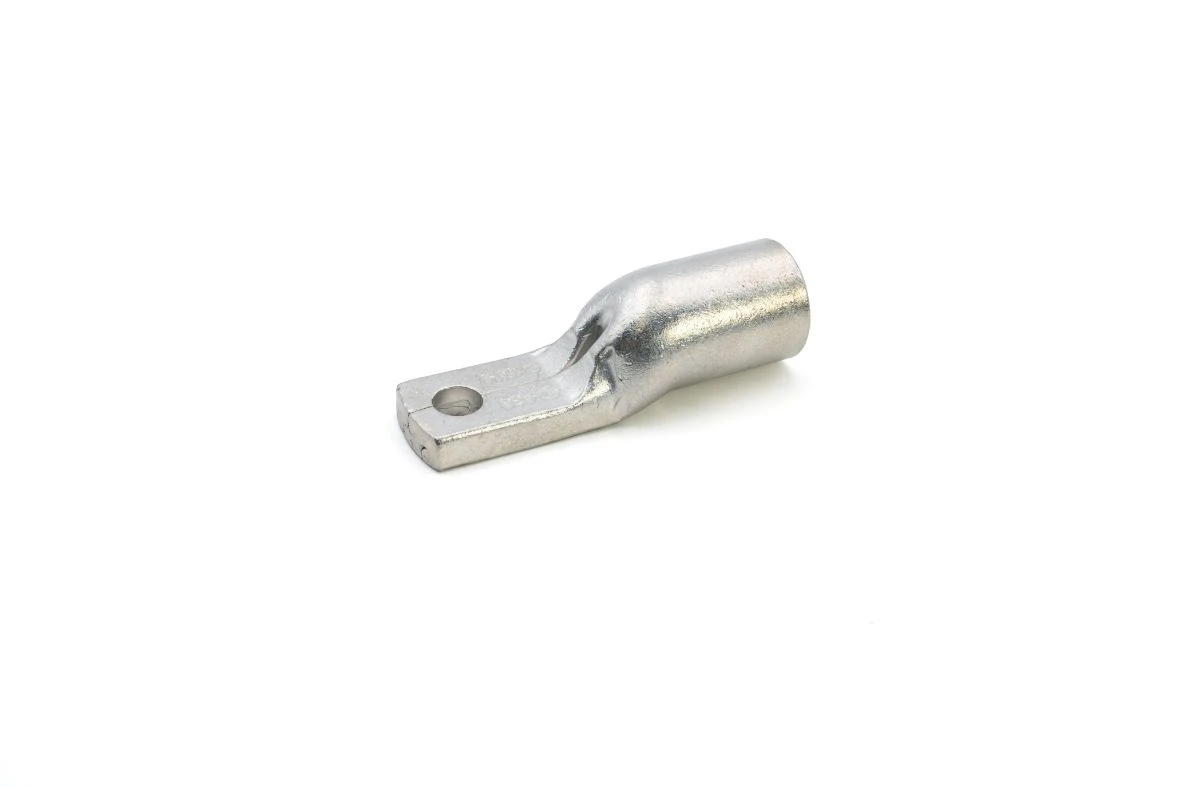

300mm² Copper tube crimping lug with contained palm M12 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Contained Palm
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Copper tube crimping lug Material Copper Connecting angle 180° (horizontal) AWG size 500 kcmil Surface protection Tinned Flange shape Ring shape Bolt dimension (metric) 12 Nominal cross section 300 mm² Number of fixing holes 1 Slender flange model Yes With sight-hole No Insulated No · Technical Data Sheet – Click to Download
