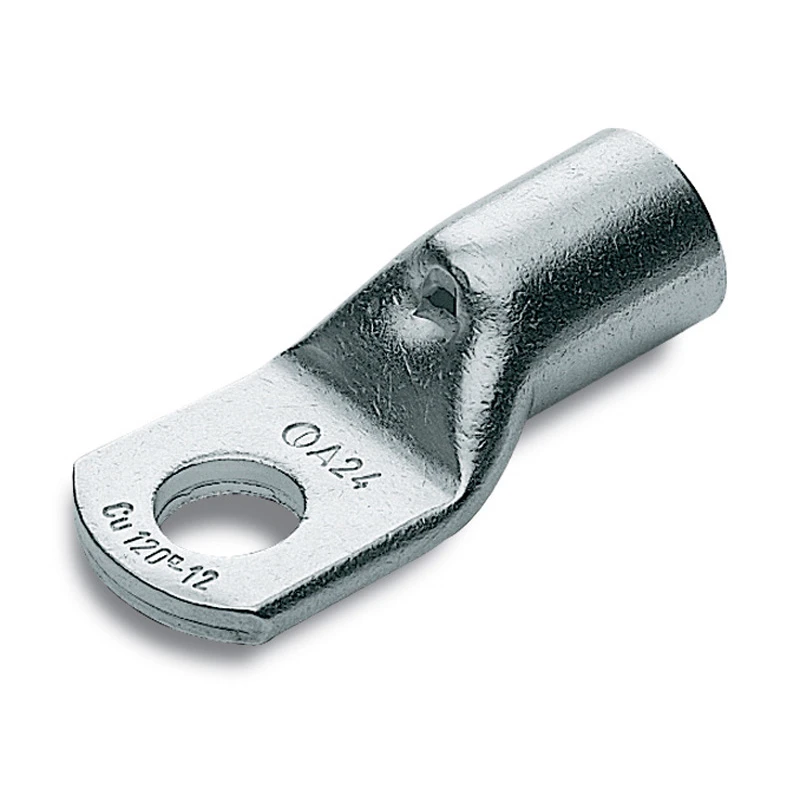

A-M Series M10 Stud Copper Tube Crimping Lug 185mm²
A-M Series M10 Stud Copper Tube Crimping Lug 185mm²
A-M Series M10 Stud Copper Tube Crimping Lug 185mm² - Image 2
A-M Series M10 Stud Copper Tube Crimping Lug 185mm² - Image 3
A-M Series M10 Stud Copper Tube Crimping Lug 185mm² - Image 4

A-M Series M10 Stud Copper Tube Crimping Lug 185mm²

£7.80 Incl. VAT

185mm² Copper tube crimping lug M10 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

81 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A37-M10 Categories: , , Brand: Part Number: 2500006679

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper Surface protection Tinned Conductor category Class 5 = flexible AWG size 300 kcmil Flange shape Ring shape Bolt dimension (metric) 10 Number of fixing holes 1 Nominal cross section 185 mm² Insulated No With sight-hole Yes Slender flange model No · Technical Data Sheet – Click to Download
