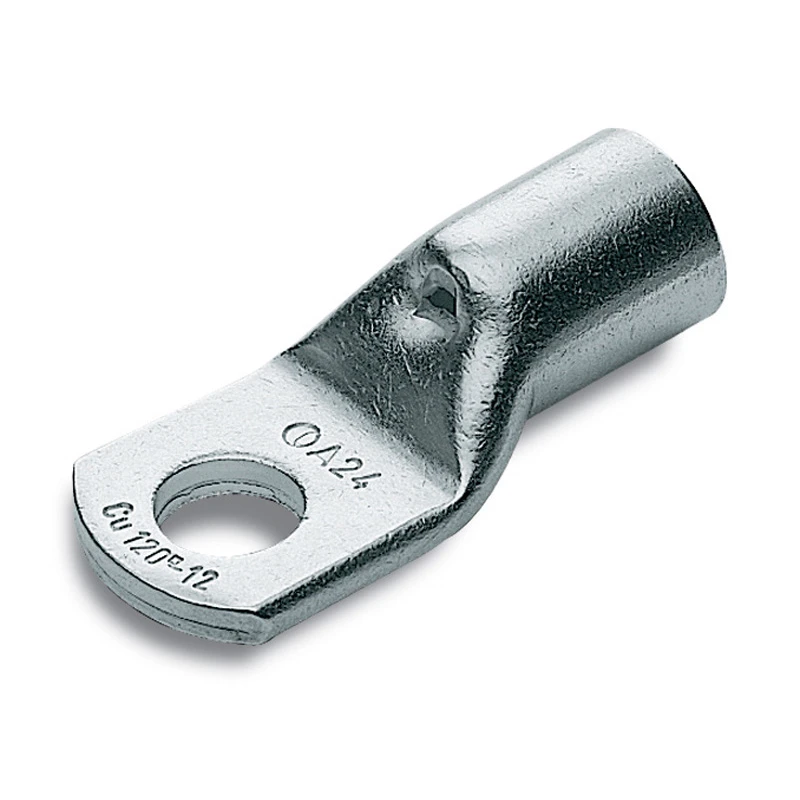

Cembre 150mm² Copper lug M12 stud [Pack of 25]
Cembre 150mm² Copper lug M12 stud [Pack of 25]
Cembre 150mm² Copper lug M12 stud [Pack of 25] - Image 2
Cembre 150mm² Copper lug M12 stud [Pack of 25] - Image 3
Cembre 150mm² Copper lug M12 stud [Pack of 25] - Image 4

Cembre 150mm² Copper lug M12 stud [Pack of 25]

£6.98 Incl. VAT

150mm² Copper tube crimping lug M12 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A30-M12 Categories: , , Brand: Product Code: 2500006165

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper Connecting angle 180° (horizontal) AWG size 250 kcmil Surface protection Tinned Flange shape Ring shape Nominal cross section 150 mm² Number of fixing holes 1 Bolt dimension (metric) 12 With sight-hole Yes Insulated No Slender flange model No · Technical Data Sheet – Click to Download
