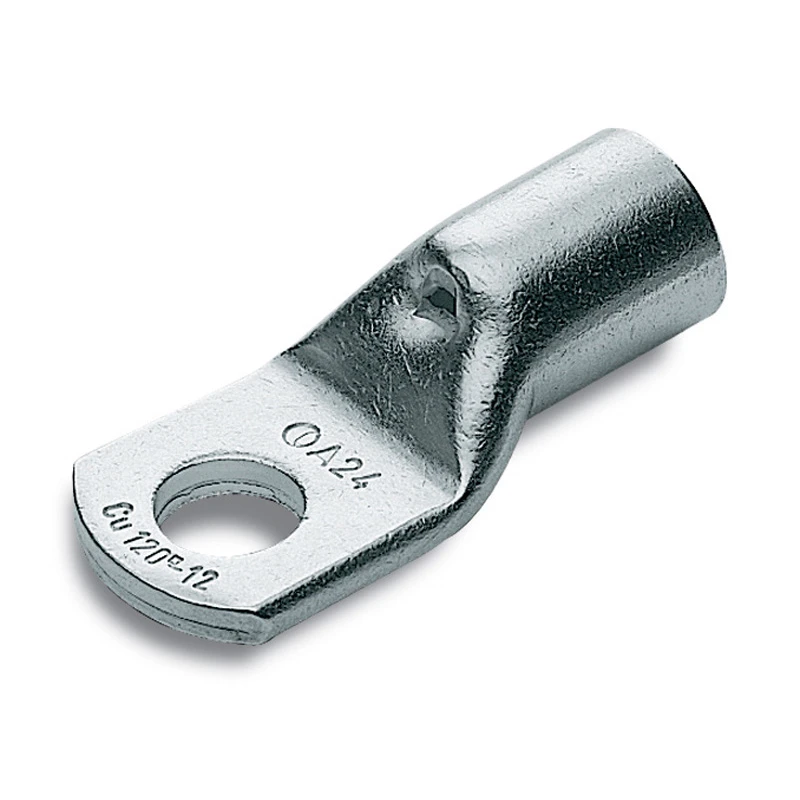

Cembre 150mm² Copper lug M16 stud [Pack of 25]
£9.61 Incl. VAT
150mm² Copper tube crimping lug M16 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Copper tube crimping lug Material Copper AWG size 250 kcmil Surface protection Tinned Connecting angle 180° (horizontal) Flange shape Ring shape Nominal cross section 150 mm² Bolt dimension (metric) 16 Insulated No Number of fixing holes 1 Slender flange model No With sight-hole Yes · Technical Data Sheet – Click to Download
