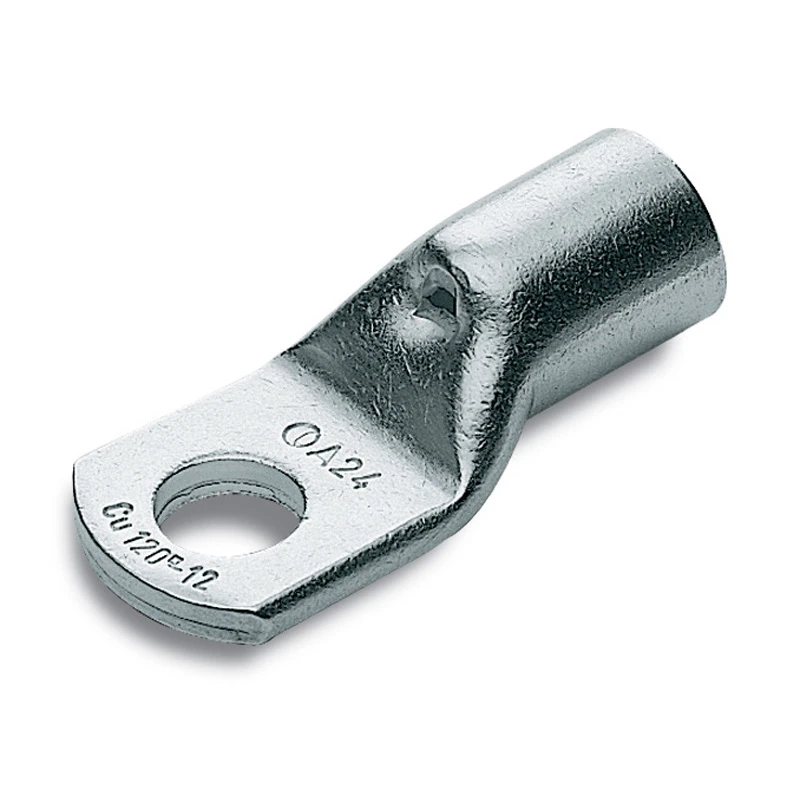

A-M Series M16 Stud Copper Tube Crimping Lug 240mm²
A-M Series M16 Stud Copper Tube Crimping Lug 240mm²
A-M Series M16 Stud Copper Tube Crimping Lug 240mm² - Image 2
A-M Series M16 Stud Copper Tube Crimping Lug 240mm² - Image 3
A-M Series M16 Stud Copper Tube Crimping Lug 240mm² - Image 4

A-M Series M16 Stud Copper Tube Crimping Lug 240mm²

£12.30 Incl. VAT

240mm² Copper tube crimping lug M16 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A48-M16 Categories: , , Brand: Part Number: 2500025487

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) AWG size 350 kcmil Material Copper Surface protection Tinned Conductor category Class 5 = flexible Flange shape Ring shape Number of fixing holes 1 Nominal cross section 240 mm² Bolt dimension (metric) 16 Insulated No With sight-hole Yes Slender flange model No · Technical Data Sheet – Click to Download
