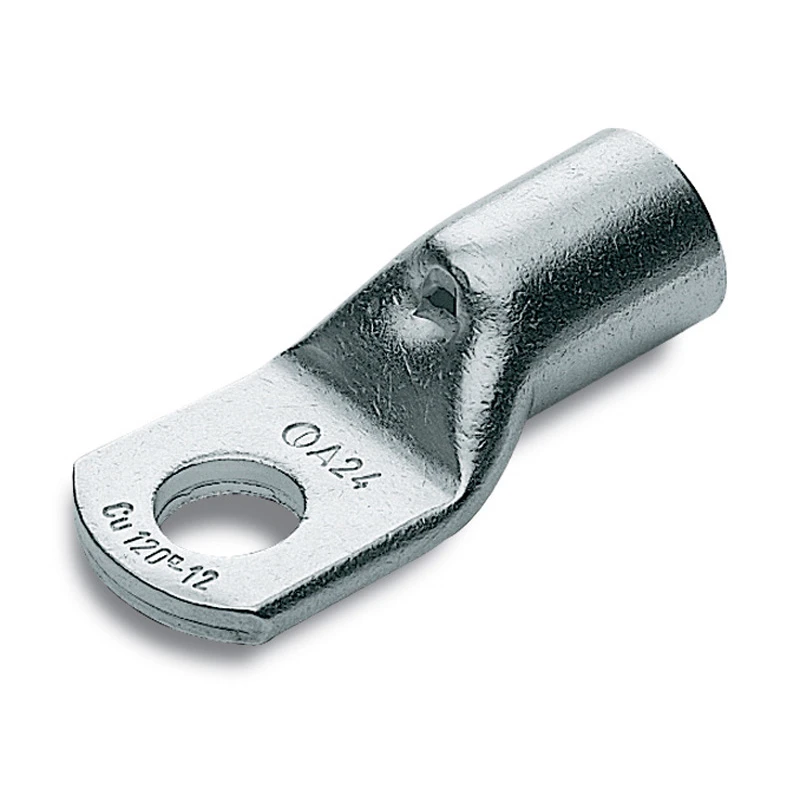

A-M Series M6 Stud Copper Tube Crimping Lug 50mm²
A-M Series M6 Stud Copper Tube Crimping Lug 50mm²
A-M Series M6 Stud Copper Tube Crimping Lug 50mm² - Image 2
A-M Series M6 Stud Copper Tube Crimping Lug 50mm² - Image 3
A-M Series M6 Stud Copper Tube Crimping Lug 50mm² - Image 4

A-M Series M6 Stud Copper Tube Crimping Lug 50mm²

£1.38 Incl. VAT

50mm² Copper tube crimping lug M6 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A10-M6 Categories: , , Brand: Part Number: 2500005310

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper Surface protection Tinned Conductor category Class 5 = flexible Flange shape Ring shape Nominal cross section 50 mm² AWG size 1 Bolt dimension (metric) 6 Number of fixing holes 1 Insulated No With sight-hole Yes Slender flange model No · Technical Data Sheet – Click to Download
