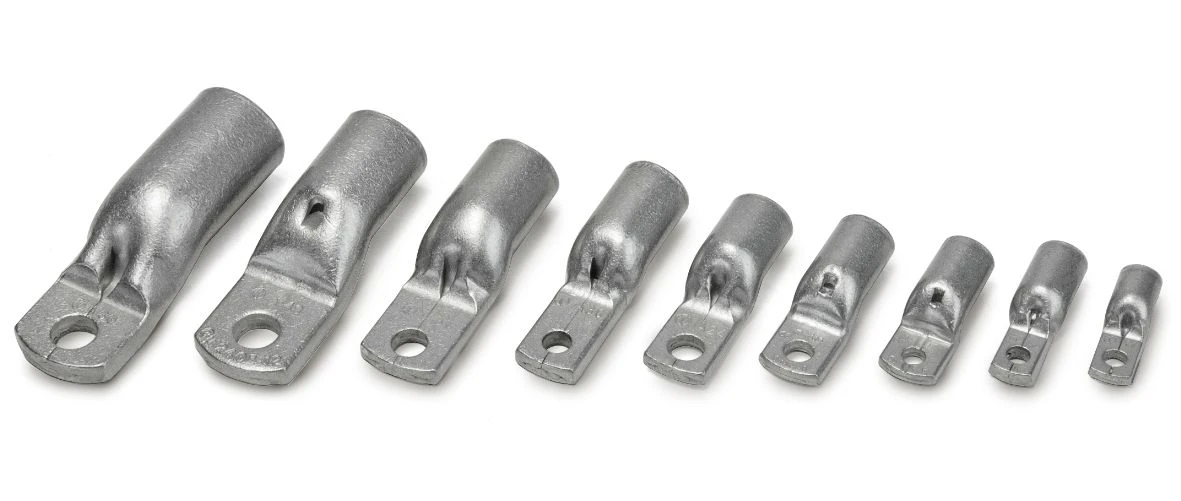

A-M Tube Crimping Lug Copper 16mm² 10mm Stud
A-M Tube Crimping Lug Copper 16mm² 10mm Stud
A-M Tube Crimping Lug Copper 16mm² 10mm Stud - Image 2
A-M Tube Crimping Lug Copper 16mm² 10mm Stud - Image 3
A-M Tube Crimping Lug Copper 16mm² 10mm Stud - Image 4

A-M Tube Crimping Lug Copper 16mm² 10mm Stud

£53.82 Incl. VAT

16mm² Copper tube crimping lug M10 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

100 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A3-M10 Categories: , , Brand: Part Number: 2500003173

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper AWG size 6 Conductor category Class 5 = flexible Surface protection Tinned Flange shape Ring shape Number of fixing holes 1 Nominal cross section 16 mm² Bolt dimension (metric) 10 Slender flange model No With sight-hole Yes Insulated No · Technical Data Sheet – Click to Download
