Cembre 240mm² Copper lug M14 stud [Pack of 10]
Cembre 240mm² Copper lug M14 stud [Pack of 10]
Cembre 240mm² Copper lug M14 stud [Pack of 10] - Image 2
Cembre 240mm² Copper lug M14 stud [Pack of 10] - Image 3
Cembre 240mm² Copper lug M14 stud [Pack of 10] - Image 4

Cembre 240mm² Copper lug M14 stud [Pack of 10]

£17.41 Incl. VAT

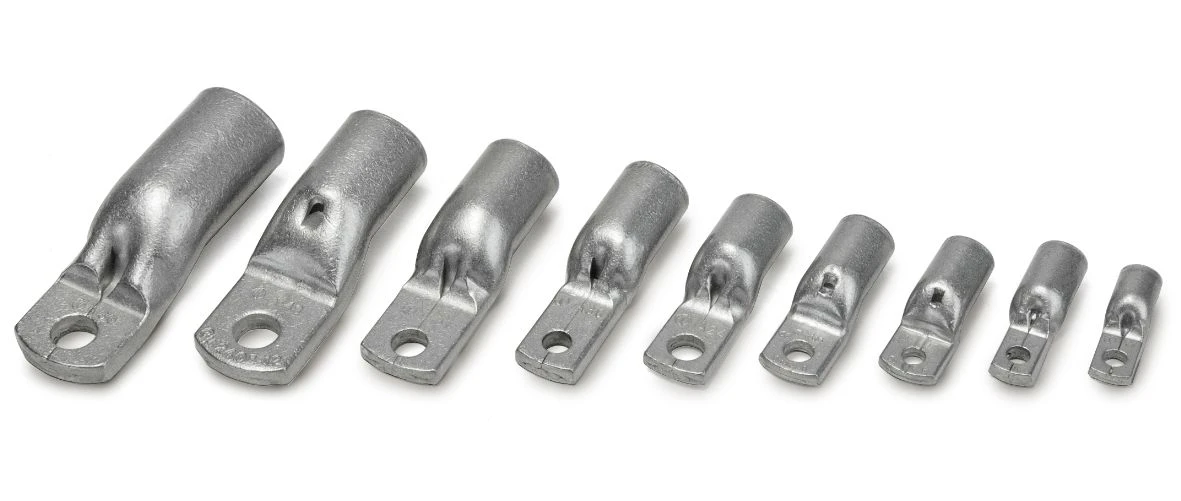

240mm² Copper tube crimping lug M14 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A48-M14 Categories: , , Brand: Product Code: 2500025486

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper AWG size 350 kcmil Connecting angle 180° (horizontal) Surface protection Tinned Nominal cross section 240 mm² Flange shape Ring shape Bolt dimension (metric) 14 Insulated No Number of fixing holes 1 With sight-hole Yes Slender flange model No · Technical Data Sheet – Click to Download
