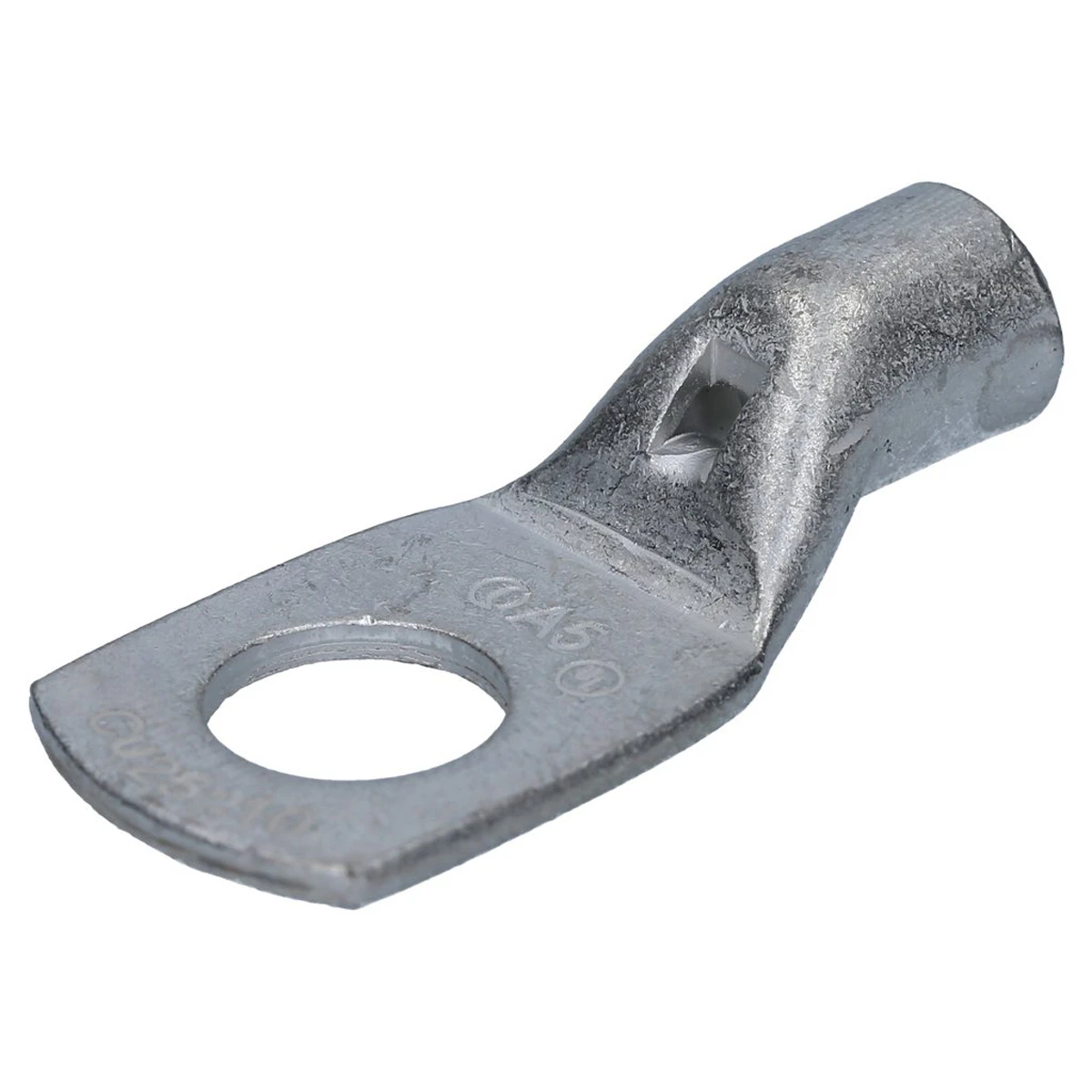

A-M Tube Crimping Lug Copper 25mm² 10mm Stud – 500 Pack

£0.66 Incl. VAT

25mm² Copper tube crimping lug M10 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

100 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A5-M10 Categories: , , Brand: Part Number: 2500003287

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper AWG size 4 Surface protection Tinned Conductor category Class 5 = flexible Flange shape Ring shape Number of fixing holes 1 Bolt dimension (metric) 10 Nominal cross section 25 mm² Insulated No With sight-hole Yes Slender flange model No · Technical Data Sheet – Click to Download
