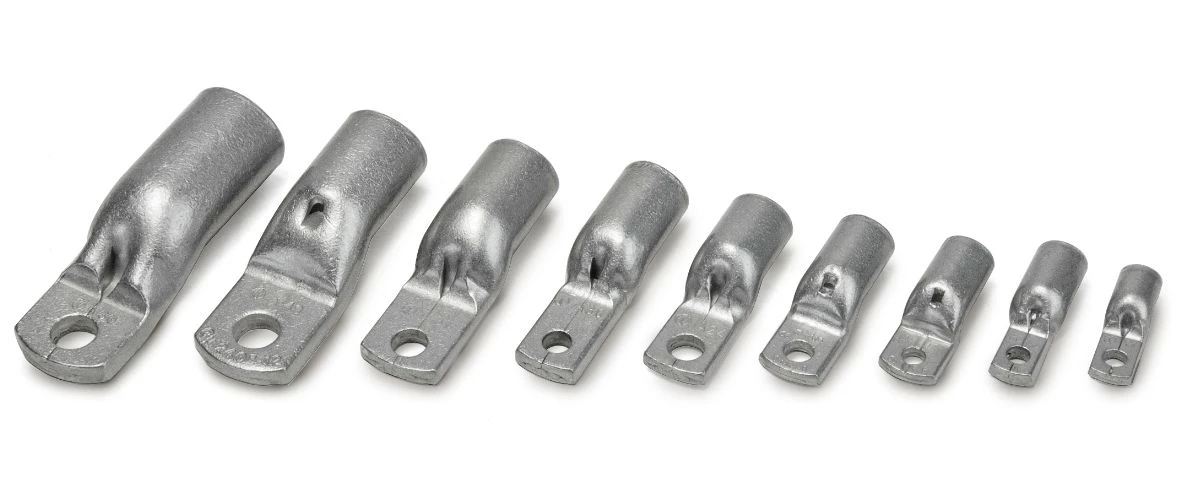

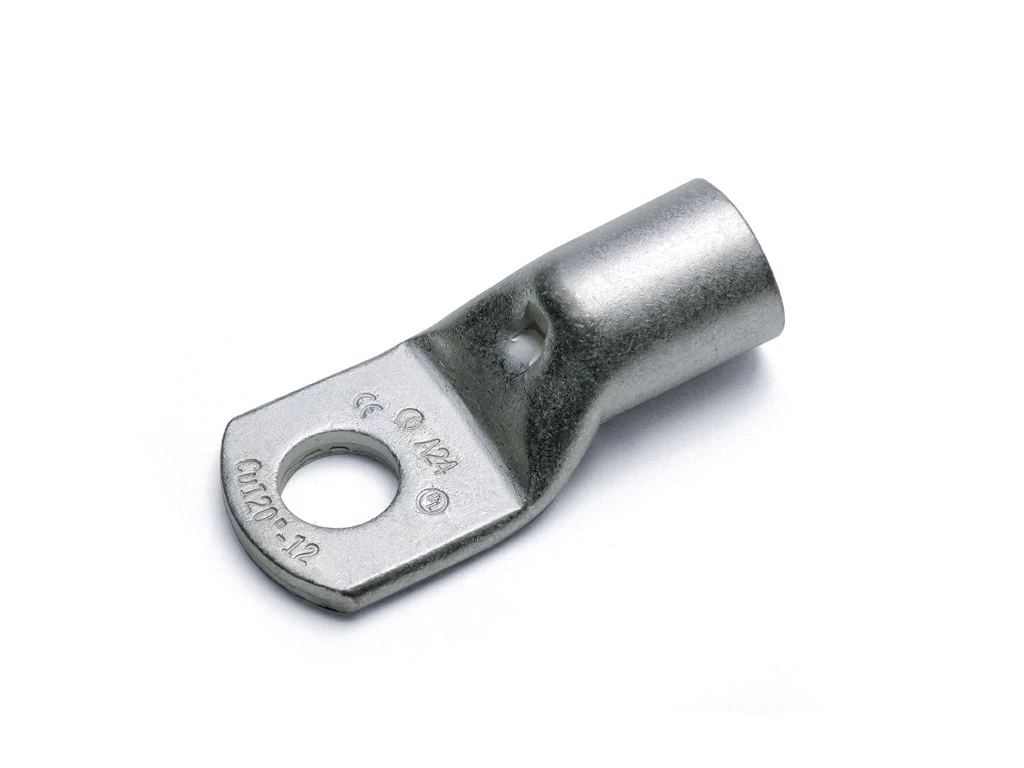

Cembre 35mm² Copper lug M6 stud [Pack of 100]
Cembre 35mm² Copper lug M6 stud [Pack of 100]
Cembre 35mm² Copper lug M6 stud [Pack of 100] - Image 2
Cembre 35mm² Copper lug M6 stud [Pack of 100] - Image 3
Cembre 35mm² Copper lug M6 stud [Pack of 100] - Image 4

Cembre 35mm² Copper lug M6 stud [Pack of 100]

£1.30 Incl. VAT

35mm² Copper tube crimping lug M6 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A7-M6 Categories: , , Brand: Product Code: 2500003385

Description

Technical Specifications  Technical Specifications Copper tube crimping lug AWG size 2 Material Copper Connecting angle 180° (horizontal) Surface protection Tinned Flange shape Ring shape Nominal cross section 35 mm² Number of fixing holes 1 Bolt dimension (metric) 6 With sight-hole Yes Slender flange model No Insulated No · Technical Data Sheet – Click to Download
