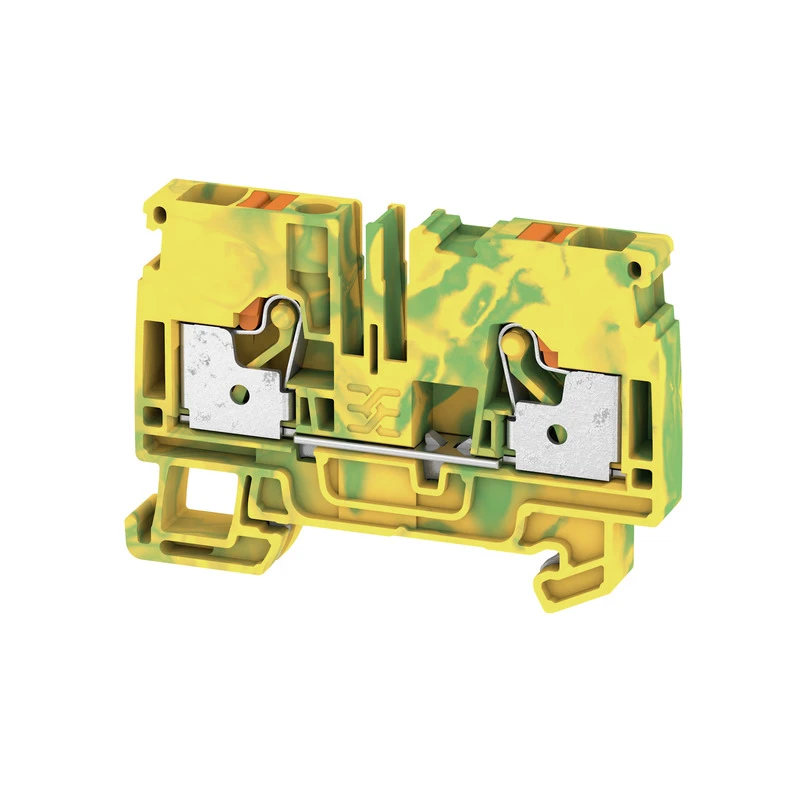

A2C 6 Pe Earth Terminal
A2C 6 Pe Earth Terminal
A2C 6 Pe Earth Terminal - Image 2

A2C 6 Pe Earth Terminal

£3.90 Incl. VAT

TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. It provides a thermal-magnetic protection with a thermal setting range 20-25A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh). · · · Push-In technology direct plug connector reduces connection times · · Increase efficiency in installation without compromising on safety · · Up to 50 percent faster installation compared to clamping yoke terminals · · Push In · · A Series · · 22 8 AWG · · 6mm · · Mechanical/Electrical durability: 100000 cycles · · Ambient temperature: -20°C to 60°C · · IP20/IK04 Degree of protection

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1991810000 Categories: , , Brand: Part Number: 2501087073

Description

Technical Specifications  Technical Specifications Earth terminal block Type of electrical connection 1 Plug-in connection Mounting method DIN rail (top hat rail) 35 mm Colour Green/yellow Number of levels 1 Connectable conductor cross section solid-core 0.5 – 0.5 mm² Connectable conductor cross section multi-wired 0.5 – 0.5 mm² PEN function possible No · Technical Data Sheet – Click to Download
