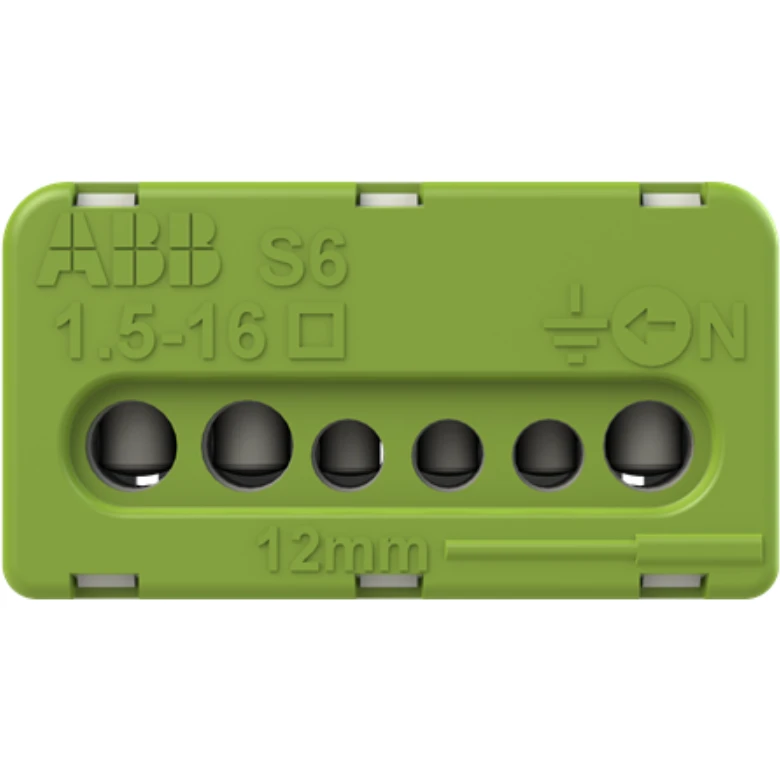

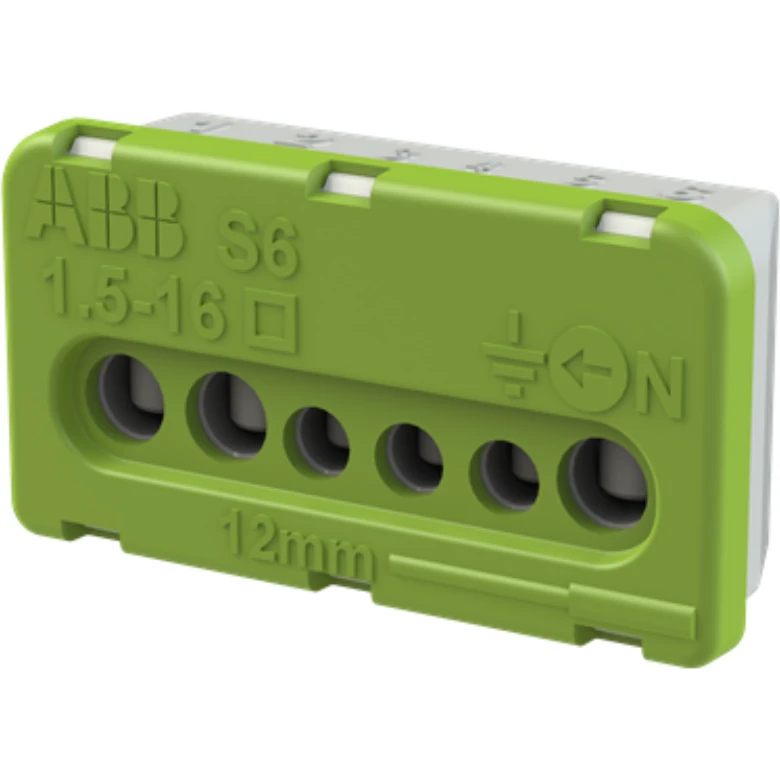

ABB 41Z62 Terminal block

Description

Technical Specifications  Technical Specifications Single- and multi-pole terminal strip Drill hole distance centrically – mm Number of clamp positions per pole – Depth 24 mm Number of poles – Height 24 mm Rated voltage 400 V Width 49 mm Operating temperature -25 – 60 °C Rated current In 100 A Connectable conductor cross section fine-strand with cable end sleeve 6 – 16 mm² Connectable conductor cross section fine-strand without cable end sleeve 6 – 16 mm² Connectable conductor cross section solid-core – – – mm² Connectable conductor cross section multi-wired – – – mm² Halogen free No Transparent No Explosion-tested version ‘Ex e’ No Closing plate required No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1579126
