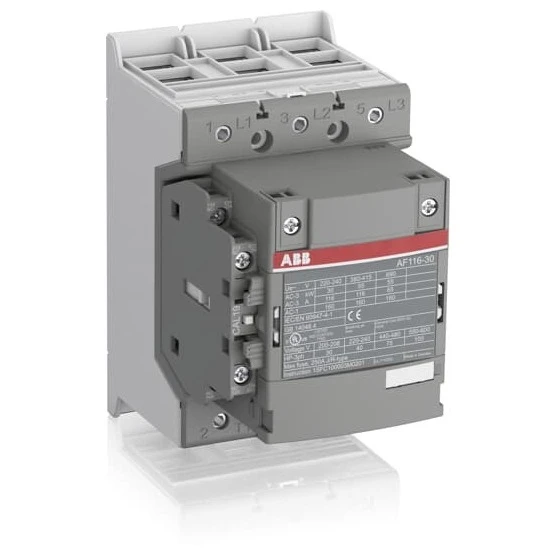

ABB AF116-30-11-13 Contactor
ABB AF116-30-11-13 Contactor
ABB AF116-30-11-13 Contactor - Image 2

ABB AF116-30-11-13 Contactor

£508.74 Incl. VAT

AF116-AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC, AF146 up to 1000 V AC. AF contactors have built in surge protection and does not require any additional surge suppressors · · · Base unit · · 230 V ac Coil · · 55 kW · · 1 GB SD card · · 1 GB SD card · · Screw Terminals

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SFL427001R1311 Categories: , , Product Code: 2501041377

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 0.00 Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 55 kW Rated operation current Ie at AC-3, 400 V 116 A Number of auxiliary contacts as normally open contact 1 Rated operation power NEMA 29.828 kW Rated operation current Ie at AC-1, 400 V 160 A Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-4, 400 V – A Rated control supply voltage at AC 50 Hz 100 – 250 V Number of auxiliary contacts as normally closed contact 1 Rated control supply voltage at AC 60 Hz 100 – 250 V Rated control supply voltage at DC 100 – 250 V Modular version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1573761 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1573762 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1573763 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1573764 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1573765
