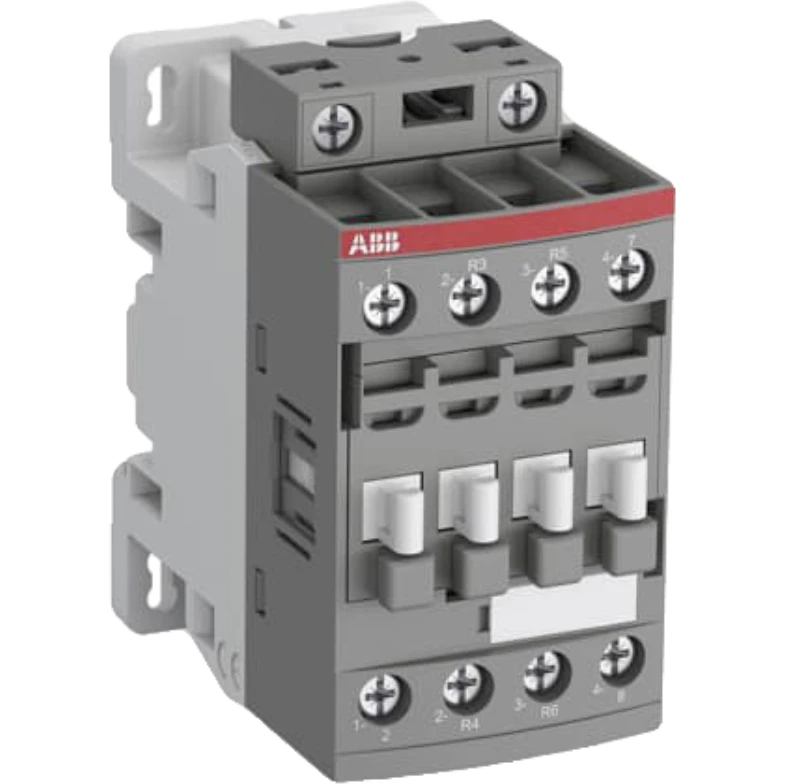

ABB AF16-22-00-12 48-130V50/60HZ-DC Contactor
£94.75 Incl. VAT
The AF16-22-00-12 Is A 4 Pole – 690 V IEC Or 600 UL Contactor With Screw Terminals, Controlling Motors Up To 7.5 KW / 400 V AC (AC-3) And Switching Power Circuits Up To 30 A (AC-1) Or 30 A UL General Use. Thanks To The AF Technology, The Contactor Has A Wide Control Voltage Range (48-130 V 50/60 Hz And DC), Managing Large Control Voltage Variations, Reducing Panel Energy Consumptions And Ensuring Distinct Operations In Unstable Networks. Furthermore, Surge Protection Is Built-In, Offering A Compact Solution. AF Contactors Have A Block Type Design, Can Be Easily Extended With Add-On Auxiliary Contact Blocks And An Additional Wide Range Of Accessories. · · · Block Contactor · · 30A AC-1 @400V
Out of Stock
Description
Technical Specifications Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 2 Number of main contacts as normally open contact 2 Number of auxiliary contacts as normally open contact 0.00 Number of auxiliary contacts as normally closed contact 0.00 Rated operation power at AC-3, 400 V 7.5 kW Rated operation power NEMA – kW Rated operation current Ie at AC-4, 400 V – A Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-1, 400 V 30 A Rated operation current Ie at AC-3, 400 V 18 A Rated control supply voltage at AC 50 Hz 48 – 48 V Rated control supply voltage at AC 60 Hz 48 – 48 V Rated control supply voltage at DC 48 – 48 V Modular version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1650782 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1650779 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1650781
