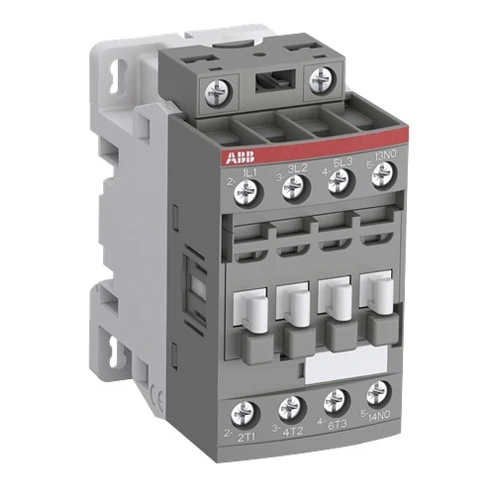

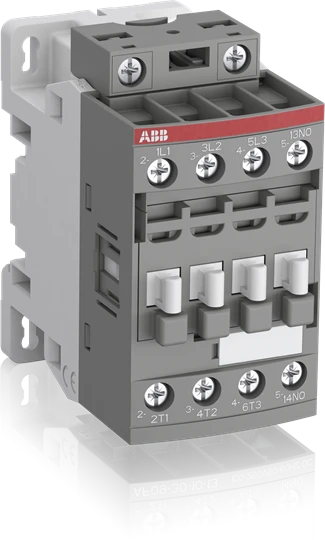

ABB AF16-30-01-11 24-60V50/60HZ 20-60VDC Contactor

ABB AF16 Contactor is used for controlling power circuits up to 690VAC and 220VDC. It is mainly used for controlling 3-phase motors · · · non-inductive or slightly inductive loads. The AF contactor includes an electronic coil interface accepting a wide control voltage minimum · · maximum Only four coils cover control voltages between 24 to 500V 50/60Hz or 20 to 500VDC. The AF contactor can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. It has bui · · front and side-mounted add-on auxiliary contact blocks. The contactor is AC/DC operated and mainly used for controlling 3-phase motors and power circuits up to 690VAC and 220VDC. This contactor is of the block type design with 3 main poles. The control ci · · reduced panel energy consumption · · very distinct closing · · opening and built-in surge suppression. This contactor is of the block type design with 3 main poles. · · Block type design with 3 main poles · · Can manage large control voltage variations · · Reduced panel energy consumption · · Very distinct closing and opening
