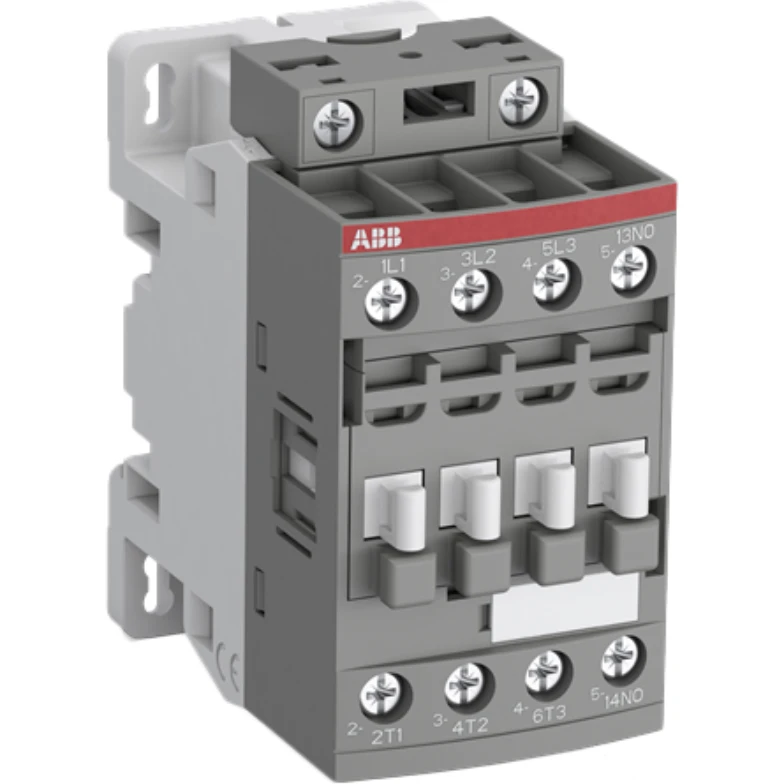

ABB AF16-30-01-12 48-130V50/60HZ-DC Contactor
Awaiting product image

ABB AF16-30-01-12 48-130V50/60HZ-DC Contactor

£80.44 Incl. VAT

AF16 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF… contactors include an electronic coil interface accepting a wide control voltage Uc min. … Uc max. Only four coils cover control voltages between 24…500 V 50/60 Hz or 20…500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF… series 1-stack 3-pole contactors are of the block type design. – Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) – Control circuit: AC or DC operated – Accessories: a wide range of accessories is available. · · · 3 Pole Contactor · · 18A AC-3 · · 1 N/C Auxiliary built in

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SBL177001R1201 Categories: , , , Product Code: 2500384212

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 0.00 Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 7.5 kW Number of auxiliary contacts as normally open contact 0.00 Rated operation power NEMA – kW Number of auxiliary contacts as normally closed contact 1 Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-4, 400 V – A Rated operation current Ie at AC-3, 400 V 18 A Rated operation current Ie at AC-1, 400 V 30 A Rated control supply voltage at AC 50 Hz 48 – 48 V Rated control supply voltage at AC 60 Hz 48 – 48 V Modular version No Rated control supply voltage at DC 48 – 48 V · Technical Data Sheet – Click to Download
