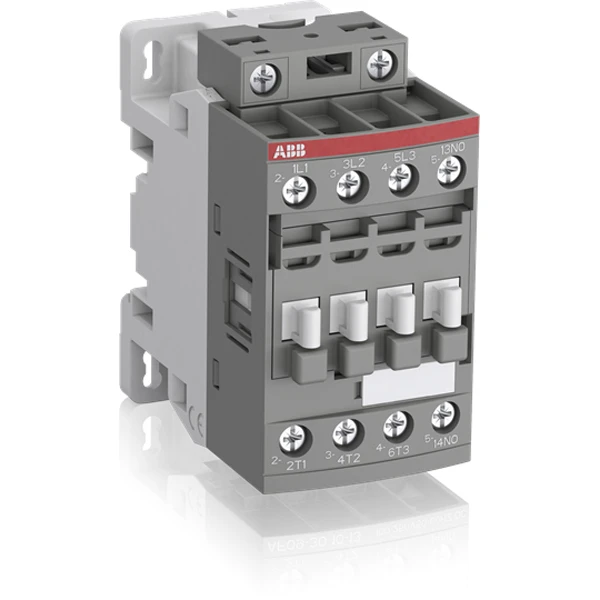

ABB AF16-30-10-13 100-250V50/60HZ-DC Contactor
ABB AF16-30-10-13 100-250V50/60HZ-DC Contactor

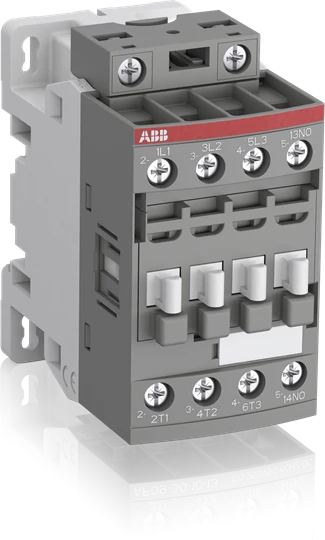

ABB AF16-30-10-13 100-250V50/60HZ-DC Contactor - Image 2
ABB AF16-30-10-13 100-250V50/60HZ-DC Contactor - Image 3
ABB AF16-30-10-13 100-250V50/60HZ-DC Contactor - Image 4

ABB AF16-30-10-13 100-250V50/60HZ-DC Contactor

£69.47 Incl. VAT

ABB 1SBL177001R1310 3 Pole AF16 contactor is used for controlling power circuits up to 690V AC and 220V DC. They are mainly used for controlling 3 Phase motors, non-inductive or slightly inductive loads. AF contactors include an electronic coil interface accepting a wide control voltage Uc min, Uc max. Only four coils cover control voltages between 24 to 500V 50/60Hz or 20 to 500V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF series 1-stack 3 Pole contactors are of the block type design. Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1). AC or DC operated control circuit. · · · Height: 86mm · · Number of Poles: 3 · · Range: AF16 · · Voltage Rating: 100 – 250V · · Width: 45mm · · AC3 Rating: 18A, AC1 Rating: 30A · · Coil voltage: 100 to 250V AC/DC · · Weight: 270g · · Depth: 77mm · · Normal State Configuration: 3NO (Main), 1NO (Auxiliary)

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SBL177001R1310 Categories: , , Brand: Part Number: 2500384202

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Rated operation power at AC-3, 400 V 7.5 kW Number of normally closed contacts as main contact 0.00 Number of main contacts as normally open contact 3 Number of auxiliary contacts as normally closed contact 0.00 Rated operation power NEMA – kW Rated operation current Ie at AC-4, 400 V – A Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-3, 400 V 18 A Rated operation current Ie at AC-1, 400 V 30 A Rated control supply voltage at AC 50 Hz 100 – 100 V Number of auxiliary contacts as normally open contact 1 Rated control supply voltage at AC 60 Hz 100 – 100 V Rated control supply voltage at DC 100 – 100 V Modular version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
