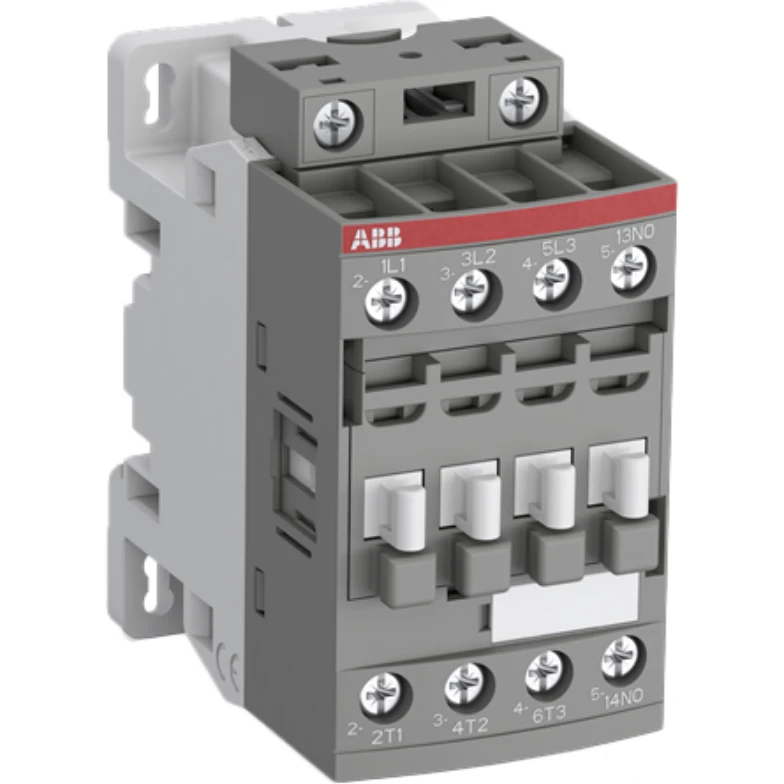

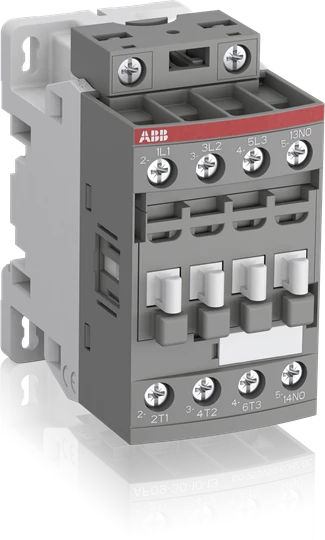

ABB AF16-30-10-14 250-500V50/60HZ-DC Contactor

The AF16-30-10-14 Is A 3 Pole – 690 V IEC Or 600 UL Contactor With 1 Built-In Auxiliary Contact And Screw Terminals, Controlling Motors Up To 7.5 KW / 400 V AC (AC-3) Or 10 Hp / 480 V UL And Switching Power Circuits Up To 30 A (AC-1) Or 30 A UL General Use. Thanks To The AF Technology, The Contactor Has A Wide Control Voltage Range (250-500 V 50/60 Hz And DC), Managing Large Control Voltage Variations, Reducing Panel Energy Consumptions And Ensuring Distinct Operations In Unstable Networks. Furthermore, Surge Protection Is Built-In, Offering A Compact Solution. AF Contactors Have A Block Type Design, Can Be Easily Extended With Add-On Auxiliary Contact Blocks And An Additional Wide Range Of Accessories. · · · Block Contactor · · 18A AC-3 · · 1 N/O Auxiliary built in · · Free flow rate with standard filter of 38 m3/h at 50 Hz and 39 m3/h at 60 Hz. · · 137 x 117 x 49 mm. · · Cut-out dimensions of 92 x 92 mm. · · Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. · · Connections terminals by cable. · · 2 protective grille on the front and rear surfaces. · · Protection IP54.
