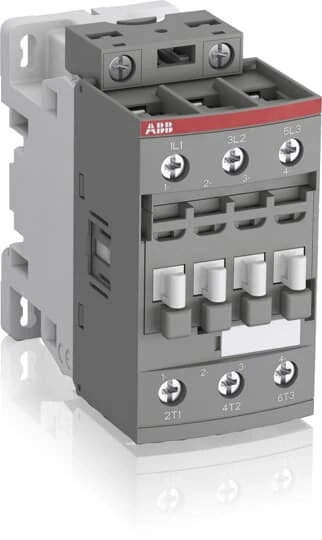

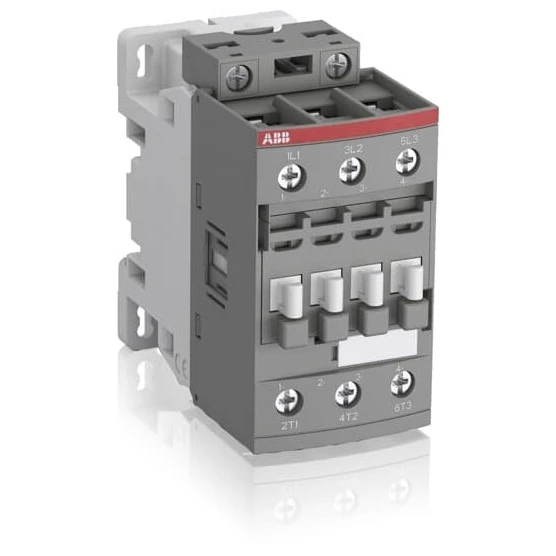

ABB AF26-30-00-11 24-60V50/60HZ 20-60VDC Contactor
£88.68 Incl. VAT
The AF26-30-00-11 Is A 3 Pole – 690 V IEC Or 600 UL Contactor With Screw Terminals, Controlling Motors Up To 11 KW / 400 V AC (AC-3) Or 15 Hp / 480 V UL And Switching Power Circuits Up To 45 A (AC-1) Or 45 A UL General Use. Thanks To The AF Technology, The Contactor Has A Wide Control Voltage Range (24-60 V 50/60 Hz And 20-60 V DC), Managing Large Control Voltage Variations, Reducing Panel Energy Consumptions And Ensuring Distinct Operations In Unstable Networks. Furthermore, Surge Protection Is Built-In, Offering A Compact Solution. AF Contactors Have A Block Type Design, Can Be Easily Extended With Add-On Auxiliary Contact Blocks And An Additional Wide Range Of Accessories. · · · Block Contactor · · Number of Main Contacts NO:3 · · Number of Main Contacts NC:0 · · Number of Auxiliary Contacts NO:0 · · Number of Auxiliary Contacts NC:0 · · Rated Operational Voltage:Main Circuit 690 V · · Rated Frequency (f):Main Circuit 50 / 60 Hz · · Screw Terminals
Out of stock
Description
Technical Specifications Technical Specifications Power contactor, AC switching Rated operation power NEMA 7.457 kW Rated operation power at AC-3, 400 V 11 kW Number of normally closed contacts as main contact 0.00 Number of main contacts as normally open contact 3 Rated operation current Ie at AC-1, 400 V 45 A Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-4, 400 V – A Rated operation current Ie at AC-3, 400 V 26 A Number of auxiliary contacts as normally open contact 0.00 Number of auxiliary contacts as normally closed contact 0.00 Rated control supply voltage at DC 20 – 20 V Rated control supply voltage at AC 50 Hz 24 – 24 V Rated control supply voltage at AC 60 Hz 24 – 24 V Modular version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
