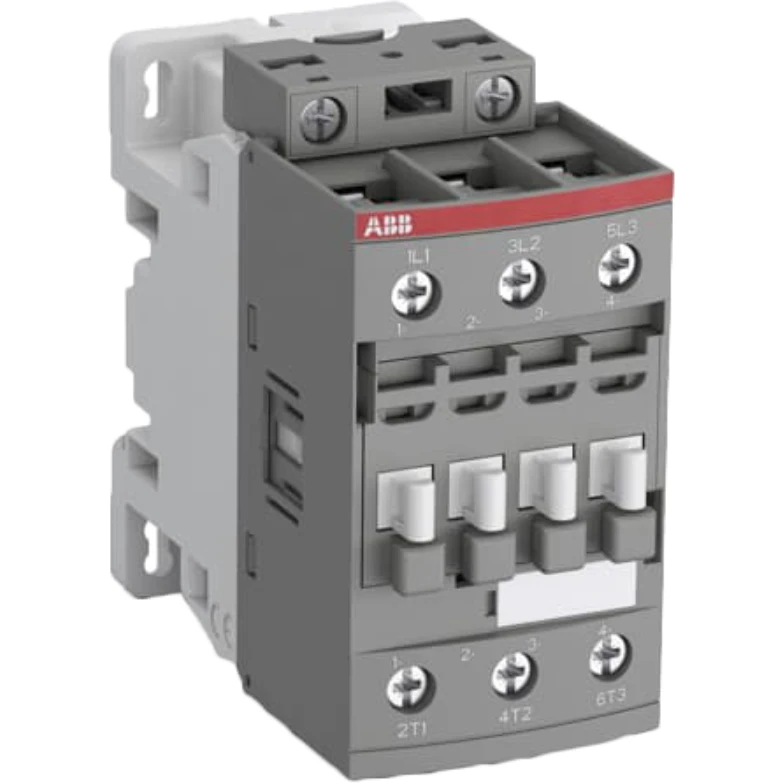

ABB AF26-30-00-14 250-500V50/60HZ-DC Contactor
£96.07 Incl. VAT
The AF26-30-00-14 Is A 3 Pole – 690 V IEC Or 600 UL Contactor With Screw Terminals, Controlling Motors Up To 11 KW / 400 V AC (AC-3) Or 15 Hp / 480 V UL And Switching Power Circuits Up To 45 A (AC-1) Or 45 A UL General Use. Thanks To The AF Technology, The Contactor Has A Wide Control Voltage Range (250-500 V 50/60 Hz And DC), Managing Large Control Voltage Variations, Reducing Panel Energy Consumptions And Ensuring Distinct Operations In Unstable Networks. Furthermore, Surge Protection Is Built-In, Offering A Compact Solution. AF Contactors Have A Block Type Design, Can Be Easily Extended With Add-On Auxiliary Contact Blocks And An Additional Wide Range Of Accessories. · · · Block Contactor · · It has a supply voltage of 12V to 24V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · High corrosion and impact-resistant nickel plating, keeping aspect and performance of the sensor for a longer time. · · Weight: 0.025kg
Out of stock
Description
Technical Specifications Technical Specifications Power contactor, AC switching Rated operation power NEMA 7.457 kW Rated operation current Ie at AC-4, 400 V – A Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-1, 400 V 45 A Number of main contacts as normally open contact 3 Rated operation current Ie at AC-3, 400 V 26 A Number of auxiliary contacts as normally open contact 0.00 Rated operation power at AC-3, 400 V 11 kW Number of auxiliary contacts as normally closed contact 0.00 Number of normally closed contacts as main contact 0.00 Rated control supply voltage at AC 50 Hz 250 – 250 V Rated control supply voltage at AC 60 Hz 250 – 250 V Rated control supply voltage at DC 250 – 250 V Modular version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
