ABB AF265-30-11-13 Contactor
ABB AF265-30-11-13 Contactor

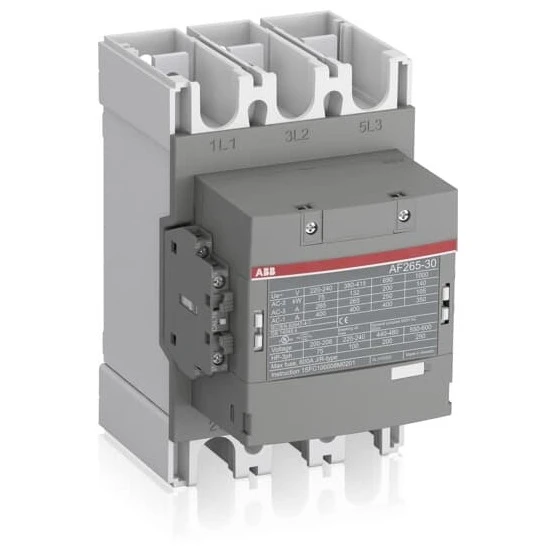

ABB AF265-30-11-13 Contactor - Image 2

ABB AF265-30-11-13 Contactor

£1,607.03 Incl. VAT

The AF265-30-11-13 Is A 3 Pole – 1000 V IEC Or 600 V UL Contactor With Pre-Mounted Auxiliary Contacts And Main Circuit Bars, Controlling Motors Up To 132 KW / 400 V AC (AC-3) Or 200 Hp / 480 V UL And Switching Power Circuits Up To 400 A (AC-1) Or 350 A UL General Use. Thanks To The AF Technology, The Contactor Has A Wide Control Voltage Range (100-250 V 50/60 Hz And DC), Managing Large Control Voltage Variations, Reducing Panel Energy Consumptions And Ensuring Distinct Operations In Unstable Networks. Furthermore, Surge Protection Is Built-In, Offering A Compact Solution. AF Contactors Have A Block Type Design, Can Be Easily Extended With Add-On Auxiliary Contact Blocks And An Additional Wide Range Of Accessories. · · · Contactor · · 3 Pole

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SFL547002R1311 Categories: , Brand: Product Code: 2501041557

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 0.00 Rated operation power at AC-3, 400 V 132 kW Number of main contacts as normally open contact 3 Number of auxiliary contacts as normally open contact 1 Rated operation power NEMA 74.57 kW Rated operation current Ie at AC-4, 400 V – A Number of auxiliary contacts as normally closed contact 1 Rated operation current Ie at AC-1, 400 V 400 A Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-3, 400 V 265 A Rated control supply voltage at AC 50 Hz 100 – 250 V Rated control supply voltage at DC 100 – 250 V Rated control supply voltage at AC 60 Hz 100 – 250 V Modular version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1575607 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1575608 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1575609 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1575610 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1575611
