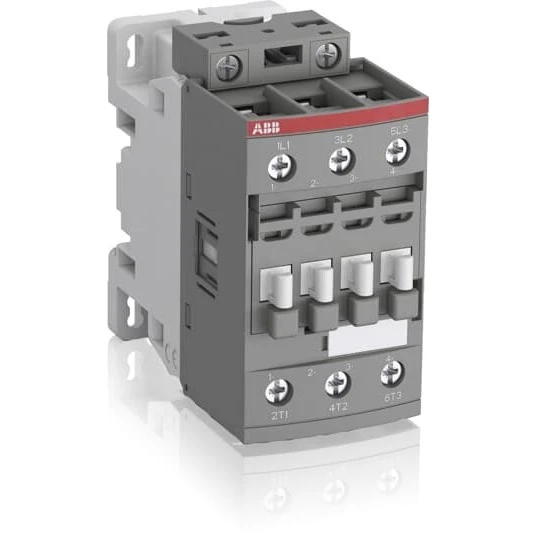

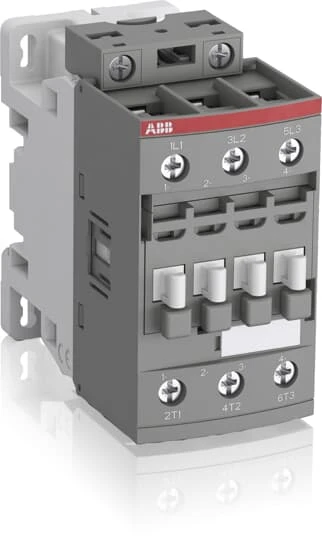

ABB AF38-30-00-11 24-60V50/60HZ 20-60VDC Contactor
£199.07 Incl. VAT
The AF38-30-00-11 Is A 3 Pole – 690 V IEC Or 600 UL Contactor With Screw Terminals, Controlling Motors Up To 18.5 KW / 400 V AC (AC-3) Or 25 Hp / 480 V UL And Switching Power Circuits Up To 50 A (AC-1) Or 50 A UL General Use. Thanks To The AF Technology, The Contactor Has A Wide Control Voltage Range (24-60 V 50/60 Hz And 20-60 V DC), Managing Large Control Voltage Variations, Reducing Panel Energy Consumptions And Ensuring Distinct Operations In Unstable Networks. Furthermore, Surge Protection Is Built-In, Offering A Compact Solution. AF Contactors Have A Block Type Design, Can Be Easily Extended With Add-On Auxiliary Contact Blocks And An Additional Wide Range Of Accessories. · · · Block Contactor
Description
Technical Specifications Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 0.00 Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 18.5 kW Number of auxiliary contacts as normally open contact 0.00 Rated operation current Ie at AC-3, 400 V 38 A Number of auxiliary contacts as normally closed contact 0.00 Rated operation power NEMA – kW Rated operation current Ie at AC-4, 400 V – A Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-1, 400 V 50 A Rated control supply voltage at DC 20 – 20 V Rated control supply voltage at AC 50 Hz 24 – 24 V Rated control supply voltage at AC 60 Hz 24 – 24 V Modular version No · Technical Data Sheet – Click to Download
