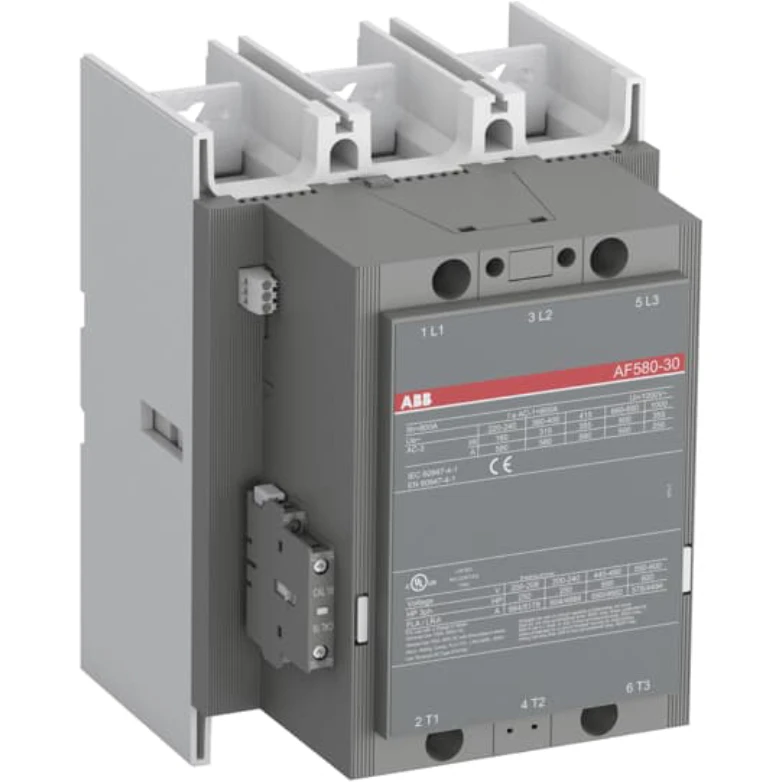

ABB AF580-30-11 24-60V DC Contactor
ABB AF580-30-11 24-60V DC Contactor
ABB AF580-30-11 24-60V DC Contactor - Image 2

ABB AF580-30-11 24-60V DC Contactor

£3,346.63 Incl. VAT

The AF580-30-11-68 Is A 3 Pole – 1000 V IEC Or 600 V UL Contactor With Pre-Mounted Auxiliary Contacts And Main Circuit Bars, Controlling Motors Up To 315 KW / 400 V AC (AC-3) Or 500 Hp / 480 V UL And Switching Power Circuits Up To 800 A (AC-1) Or 750 A UL General Use. Thanks To The AF Technology, The Contactor Has A Wide Control Voltage Range (24-60 V DC), Managing Large Control Voltage Variations, Reducing Panel Energy Consumptions And Ensuring Distinct Operations In Unstable Networks. Furthermore, Surge Protection Is Built-In, Offering A Compact Solution. AF Contactors Have A Block Type Design, Can Be Easily Extended With Add-On Auxiliary Contact Blocks And An Additional Wide Range Of Accessories. · · · Contactor · · 3 Pole

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SFL617001R6811 Categories: , Brand: Product Code: 2500248573

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Rated operation power at AC-3, 400 V 315 kW Number of normally closed contacts as main contact 0.00 Number of main contacts as normally open contact 3 Number of auxiliary contacts as normally open contact 1 Rated operation power NEMA 186.425 kW Rated operation current Ie at AC-4, 400 V – A Number of auxiliary contacts as normally closed contact 1 Rated operation current Ie at AC-1, 400 V 800 A Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-3, 400 V 580 A Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at AC 60 Hz – – – V Rated control supply voltage at DC 24 – 60 V Modular version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
