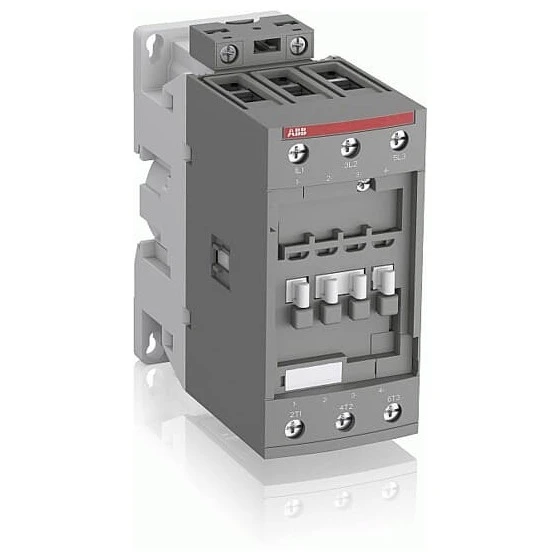

ABB AF65-30-00-13 100-250V50/60HZ-DC Contactor
ABB AF65-30-00-13 100-250V50/60HZ-DC Contactor
ABB AF65-30-00-13 100-250V50/60HZ-DC Contactor - Image 2

ABB AF65-30-00-13 100-250V50/60HZ-DC Contactor

£409.84 Incl. VAT

The AF65-30-00-13 Is A 3 Pole – 690 V IEC Or 600 UL Contactor With Screw Terminals, Controlling Motors Up To 30 KW / 400 V AC (AC-3) Or 50 Hp / 480 V UL And Switching Power Circuits Up To 105 A (AC-1) Or 90 A UL General Use. Thanks To The AF Technology, The Contactor Has A Wide Control Voltage Range (100-250 V 50/60 Hz And DC), Managing Large Control Voltage Variations, Reducing Panel Energy Consumptions And Ensuring Distinct Operations In Unstable Networks. Furthermore, Surge Protection Is Built-In, Offering A Compact Solution. AF Contactors Have A Block Type Design, Can Be Easily Extended With Add-On Auxiliary Contact Blocks And An Additional Wide Range Of Accessories. · · · Block Contactor

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SBL387001R1300 Categories: , Brand: Product Code: 2501025816

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Rated operation power NEMA – kW Rated operation current Ie at AC-4, 400 V – A Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-1, 400 V 105 A Rated operation power at AC-3, 400 V 30 kW Rated operation current Ie at AC-3, 400 V 65 A Number of main contacts as normally open contact 3 Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as normally open contact 0.00 Number of normally closed contacts as main contact 0.00 Rated control supply voltage at AC 60 Hz 100 – 100 V Rated control supply voltage at AC 50 Hz 100 – 100 V Rated control supply voltage at DC 100 – 100 V Modular version No · Technical Data Sheet – Click to Download
