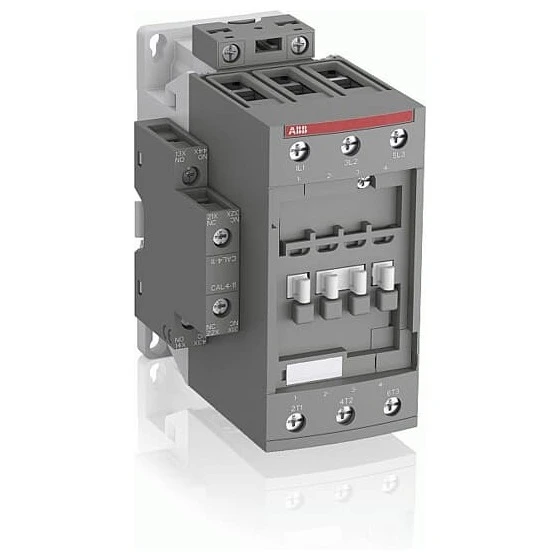

ABB AF65-30-11-14 250-500V50/60HZ-DC Contactor
ABB AF65-30-11-14 250-500V50/60HZ-DC Contactor
ABB AF65-30-11-14 250-500V50/60HZ-DC Contactor - Image 2

ABB AF65-30-11-14 250-500V50/60HZ-DC Contactor

£429.42 Incl. VAT

The AF65-30-11-14 Is A 3 Pole – 690 V IEC Or 600 UL Contactor With Pre-Mounted Auxiliary Contacts And Screw Terminals, Controlling Motors Up To 30 KW / 400 V AC (AC-3) Or 50 Hp / 480 V UL And Switching Power Circuits Up To 105 A (AC-1) Or 90 A UL General Use. Thanks To The AF Technology, The Contactor Has A Wide Control Voltage Range (250-500 V 50/60 Hz And DC), Managing Large Control Voltage Variations, Reducing Panel Energy Consumptions And Ensuring Distinct Operations In Unstable Networks. Furthermore, Surge Protection Is Built-In, Offering A Compact Solution. AF Contactors Have A Block Type Design, Can Be Easily Extended With Add-On Auxiliary Contact Blocks And An Additional Wide Range Of Accessories. · · · Block Contactor

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SBL387001R1411 Categories: , Brand: Product Code: 2501025820

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of main contacts as normally open contact 3 Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as normally closed contact 1 Rated operation power at AC-3, 400 V 30 kW Rated operation power NEMA – kW Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-4, 400 V – A Rated operation current Ie at AC-3, 400 V 65 A Rated operation current Ie at AC-1, 400 V 105 A Rated control supply voltage at AC 50 Hz 250 – 250 V Number of normally closed contacts as main contact 0.00 Rated control supply voltage at AC 60 Hz 250 – 250 V Rated control supply voltage at DC 250 – 250 V Modular version No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1651515 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1651512 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1651514
