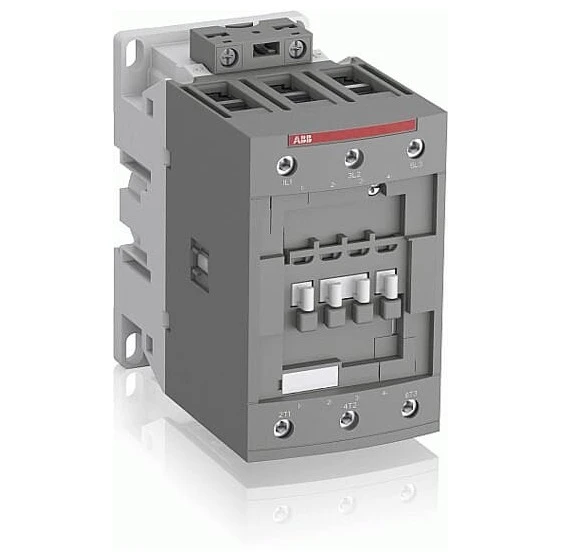

ABB AF80-30-00-13 100-250V50/60HZ-DC Contactor
ABB AF80-30-00-13 100-250V50/60HZ-DC Contactor
ABB AF80-30-00-13 100-250V50/60HZ-DC Contactor - Image 2

ABB AF80-30-00-13 100-250V50/60HZ-DC Contactor

£512.27 Incl. VAT

The AF80-30-00-13 Is A 3 Pole – 1000 V IEC Or 600 UL Contactor With Screw Terminals, Controlling Motors Up To 37 KW / 400 V AC (AC-3) Or 60 Hp / 480 V UL And Switching Power Circuits Up To 125 A (AC-1) Or 105 A UL General Use. Thanks To The AF Technology, The Contactor Has A Wide Control Voltage Range (100-250 V 50/60 Hz And DC), Managing Large Control Voltage Variations, Reducing Panel Energy Consumptions And Ensuring Distinct Operations In Unstable Networks. Furthermore, Surge Protection Is Built-In, Offering A Compact Solution. AF Contactors Have A Block Type Design, Can Be Easily Extended With Add-On Auxiliary Contact Blocks And An Additional Wide Range Of Accessories. · · · Block Contactor

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SBL397001R1300 Categories: , Brand: Product Code: 2501025831

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 0.00 Rated operation power at AC-3, 400 V 37 kW Number of main contacts as normally open contact 3 Number of auxiliary contacts as normally open contact 0.00 Number of auxiliary contacts as normally closed contact 0.00 Rated operation current Ie at AC-4, 400 V – A Rated operation power NEMA 37.285 kW Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-3, 400 V 80 A Rated operation current Ie at AC-1, 400 V 125 A Rated control supply voltage at AC 50 Hz 100 – 100 V Rated control supply voltage at AC 60 Hz 100 – 100 V Rated control supply voltage at DC 100 – 100 V Modular version No · Technical Data Sheet – Click to Download
