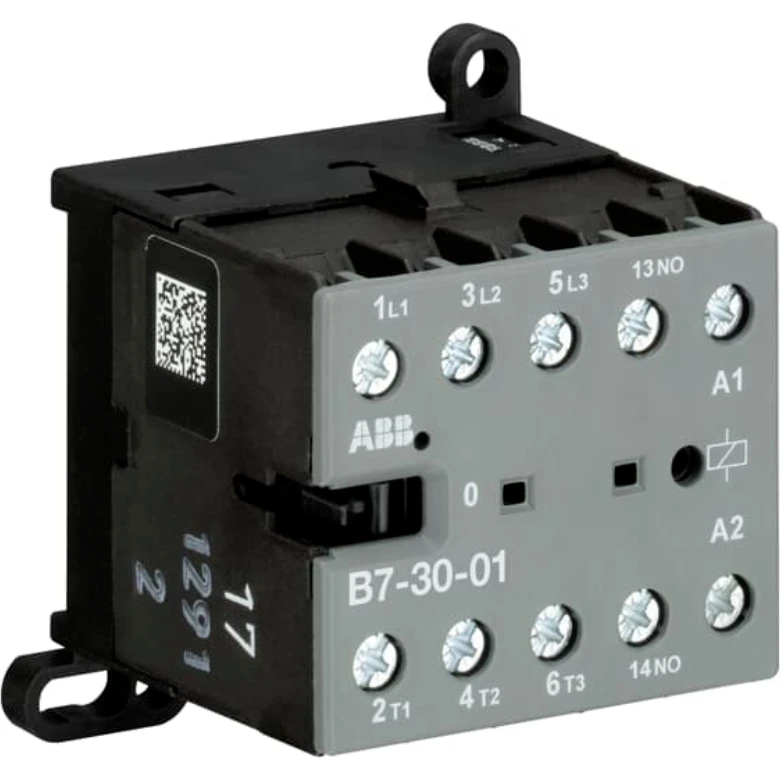

ABB B7-30-01-80 Mini Contactor 220-240V 40-450Hz
£59.22 Incl. VAT
The B7-30-01 Mini Contactor Is A Compact 3 Pole Contactor With 1 Auxiliary Contact And Screw Terminals. They Are Ideally Suited For Applications Where Reliability Is A Must And Space Is At A Premium. Mini Contactors Are Used In Residential Buldings, Commercial Buildings And Industrial Applications For The Control Of Single Or Three-Phase Loads Up To 5.5 KW (AC-3) And 20 A / 690 V (AC-1) Or Switching Of Control Signals. Further Features Are The Silent Coil, A Switch Position Indication And The Integrated Possibility For Rail Or Wall Mounting. · · · Mini Contactor · · 3 Pole
Description
Technical Specifications Technical Specifications Power contactor, AC switching Rated operation power NEMA 2.2371 kW Rated operation current Ie at AC-4, 400 V – A Rated operation power at AC-4, 400 V – kW Rated operation current Ie at AC-3, 400 V 12 A Rated operation current Ie at AC-1, 400 V 20 A Number of auxiliary contacts as normally open contact 0.00 Number of auxiliary contacts as normally closed contact 1 Rated operation power at AC-3, 400 V 5.5 kW Number of normally closed contacts as main contact 0.00 Number of main contacts as normally open contact 3 Rated control supply voltage at AC 60 Hz 220 – 220 V Rated control supply voltage at DC – – – V Modular version No Rated control supply voltage at AC 50 Hz 220 – 240 V · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
