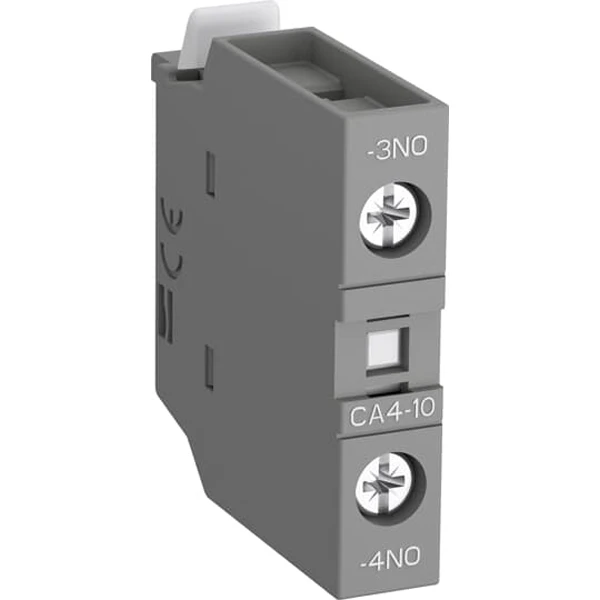

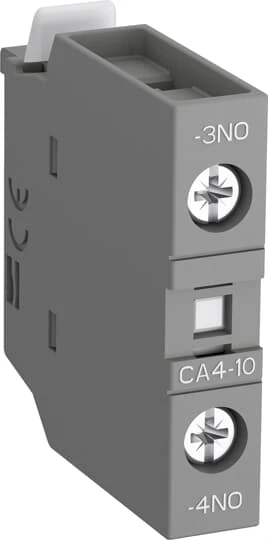

ABB CA4-10 Auxiliary Contact Block
ABB CA4-10 Auxiliary Contact Block
ABB CA4-10 Auxiliary Contact Block - Image 2
ABB CA4-10 Auxiliary Contact Block - Image 3
ABB CA4-10 Auxiliary Contact Block - Image 4

ABB CA4-10 Auxiliary Contact Block

£6.35 Incl. VAT

ABB 1SBN010110R1010 CA4-10 1NO auxiliary contact block is suitable for AF09/AF12/AF16/AF26/AF30/AF38/AF40/AF52/AF65/AF80/AF96 contractors. It features screw terminal type, 10mm wire stripping length, 11 in-lbs tightening torque and 6kV rated impulse withstand voltage (Uimp). 16A conventional free-air thermal current (Ith) according to IEC 60947-5-1. · · · Mounting Type: Front · · Range: AF · · Weight: 14g · · Normal State Configuration: 1NO

25 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SBN010110R1010 Categories: , , Brand: Part Number: 2500385086

Description

Technical Specifications  Technical Specifications Auxiliary contact block Number of contacts as normally closed contact 0.00 Rated operation current Ie at AC-15, 230 V 4 A Number of fault-signal switches 0.00 Number of contacts as change-over contact 0.00 Number of contacts as normally open contact 1 · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
