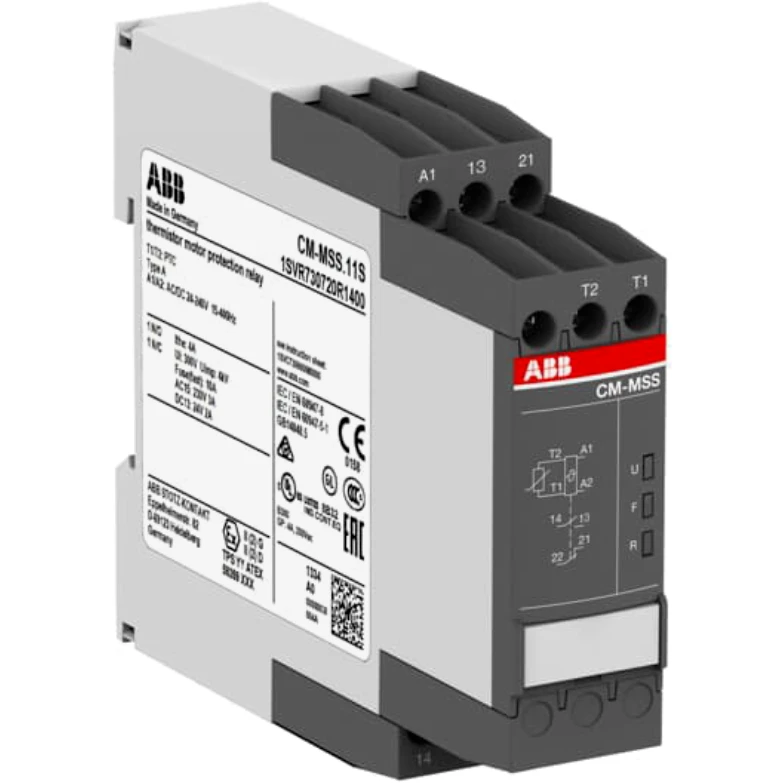

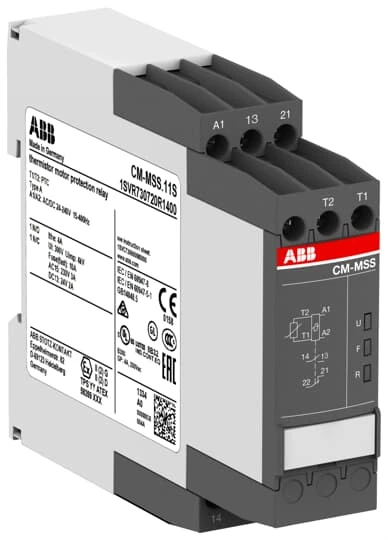

ABB CM-MSS.11S Thermistor Motor Protection Relay 1n/o+1n/c - 24-240VAC/DC
ABB CM-MSS.11S Thermistor Motor Protection Relay 1n/o+1n/c - 24-240VAC/DC
ABB CM-MSS.11S Thermistor Motor Protection Relay 1n/o+1n/c - 24-240VAC/DC - Image 2
ABB CM-MSS.11S Thermistor Motor Protection Relay 1n/o+1n/c - 24-240VAC/DC - Image 3
ABB CM-MSS.11S Thermistor Motor Protection Relay 1n/o+1n/c - 24-240VAC/DC - Image 4

ABB CM-MSS.11S Thermistor Motor Protection Relay 1n/o+1n/c – 24-240VAC/DC

£127.91 Incl. VAT

The CM-MSS.11S Belongs To The CM-MSS Thermistor Motor Protection Relay Range. It Operates With A Rated Control Supply Voltage Of 24 – 240 V AC / DC And Has A 1 N/C + 1 N/O (SPDT) Output With Contacts Rated At 250 V / 4 A. It Features One Sensor Circuit To Monitor PTC Temperature Sensors And Works According To The Closed-Circuit Principle. The Sensor Circuit Of The CM-MSS.11S Is Interrupted-Wire Monitored And The Relay Will Be Reset Automatically After The Failure Has Been Removed. This Protection Relay Is Certified According To The ATEX Directive 94/9/EC. A Sealable Transparent Cover For Protection Against Unauthorized Changes Is Available As Accessory. The Device Offers Screw Connection Technology With Double-Chamber Cage Connection Terminals. · · · Thermistor Motor Protection Relays · · It is compatible with Harmony XB4 and XB5 push buttons and pilot lights. · · This legend holder allows you to customize the control unit with an engraved tag, in line with the design approved by your customer. · · It is compatible with any standard 22mm Harmony control or signalling unit. · · It provides clear and resilient symbol marking on the label, with high contrast.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SVR730720R1400 Categories: , , Brand: Part Number: 2500802049

Description

Technical Specifications  Technical Specifications Relay for thermistor protection (PTC) Depth 103.7 mm Width 22.5 mm Height 85.6 mm Number of measuring circuits 1 Number of contacts as normally closed contact 1 Number of contacts as normally open contact 1 Number of contacts as change-over contact 0.00 Rated control supply voltage 24 – 240 V Error registration possible No External reset possible No With detachable clamps No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581269 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581270 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581271 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581272 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581273 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581274 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581276 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581277 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581278 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581279 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581281 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581282 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581283 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581284
