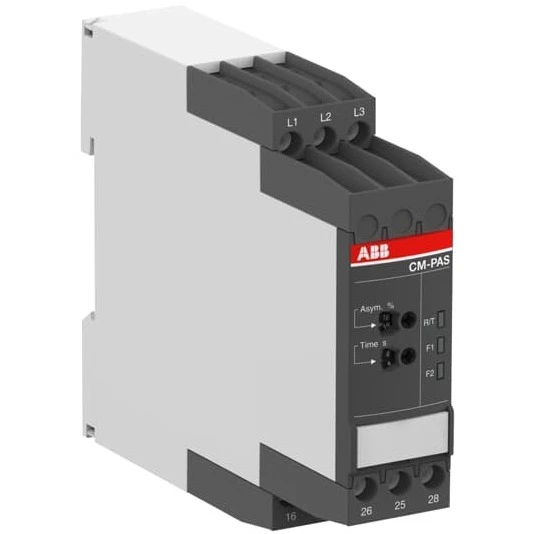

ABB CM-PAS.41S Three-phase monitoring relay 2c/o - 0,0.1-30s - L1-L2-L3=3x300-500VAC
ABB CM-PAS.41S Three-phase monitoring relay 2c/o - 0,0.1-30s - L1-L2-L3=3x300-500VAC
ABB CM-PAS.41S Three-phase monitoring relay 2c/o - 0,0.1-30s - L1-L2-L3=3x300-500VAC - Image 2

ABB CM-PAS.41S Three-phase monitoring relay 2c/o – 0,0.1-30s – L1-L2-L3=3×300-500VAC

£243.43 Incl. VAT

The CM-PAS.41S Relay Is From The CM Three-Phase Monitors Range. This Relay Operates With A Rated Control Supply Voltage / Three-Phase Measuring Voltage Of 300-500 V AC And Has A 2 C/O Output With Contacts Rated At 250 V / 4 A. The CM-PAS.41S Monitors The Phase Parameters Phase Failure, Phase Sequence And Phase Unbalance. An ON-Delay Is Adjustable Over A Range Of Instantaneous To 30 S (0, 0.1-30 S). A Sealable Transparent Cover For Protection Against Unauthorized Changes Is Available As Accessory. The Device Offers Screw Connection Technology With Double-Chamber Cage Connection Terminals. · · · Three-Phase Monitoring Relay

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SVR730774R3300 Categories: , Brand: Product Code: 2501047365

Description

Technical Specifications  Technical Specifications Phase monitoring relay Number of contacts as normally closed contact 0.00 Number of contacts as normally open contact 0.00 Min. adjustable off-delay time 0.1 s Max. permitted delay-on energization time 0.2 s Max. permitted off-delay time 30 s Min. adjustable delay-on energization time 0.2 s Width 22.5 mm Depth 103.7 mm Number of contacts as change-over contact 2 Voltage measurement range 300 – 500 V With detachable clamps No Function under voltage detection No Height 85.6 mm Phase sequence monitoring Yes Phase failure detection Yes Function over voltage detection No Phase imbalance monitoring Yes · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581837 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581838 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581839
