ABB CM-PFS.S Three-phase monitoring relay 2c/o - L1-L2-L3=200-500VAC 50/60Hz
ABB CM-PFS.S Three-phase monitoring relay 2c/o - L1-L2-L3=200-500VAC 50/60Hz
ABB CM-PFS.S Three-phase monitoring relay 2c/o - L1-L2-L3=200-500VAC 50/60Hz - Image 2
ABB CM-PFS.S Three-phase monitoring relay 2c/o - L1-L2-L3=200-500VAC 50/60Hz - Image 3

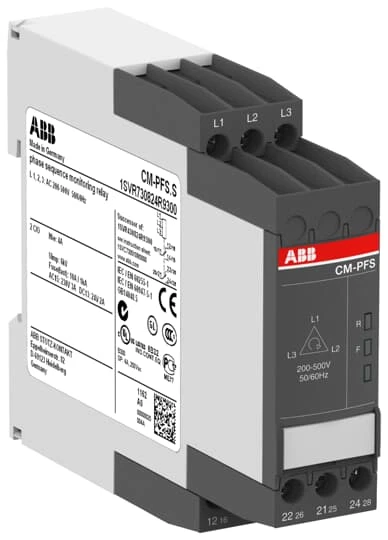

ABB CM-PFS.S Three-phase monitoring relay 2c/o - L1-L2-L3=200-500VAC 50/60Hz - Image 4

ABB CM-PFS.S Three-phase monitoring relay 2c/o – L1-L2-L3=200-500VAC 50/60Hz

£111.49 Incl. VAT

Phase Sequence Relay CM-PFS.S, Width 22.5mm, Measuring Range L1-L2-L3=200-500VAC 50/60Hz, Powered By Measuring Range, 2 C/O (Closed Circuit Principle). The Device Offers Screw Connection Technology With Double-Chamber Cage Connection Terminals. · · · Three-Phase Monitoring Relay

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SVR730824R9300 Categories: , , , , Product Code: 2501047371

Description

Technical Specifications  Technical Specifications Phase monitoring relay Width 22.5 mm Depth 103.7 mm Height 85.6 mm Number of contacts as normally closed contact 0.00 Number of contacts as normally open contact 0.00 Min. adjustable off-delay time – s Max. permitted off-delay time – s Number of contacts as change-over contact 2 Max. permitted delay-on energization time 0.5 s Min. adjustable delay-on energization time 0.5 s With detachable clamps No Voltage measurement range 200 – 500 V Phase imbalance monitoring No Phase failure detection Yes Function under voltage detection No Function over voltage detection No Phase sequence monitoring Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581928 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581929 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581930 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581931 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581913 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581914 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581915 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581916 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581917 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581918 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581919 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581920 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581921 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581922 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581923 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581924 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581925 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581926 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581927
