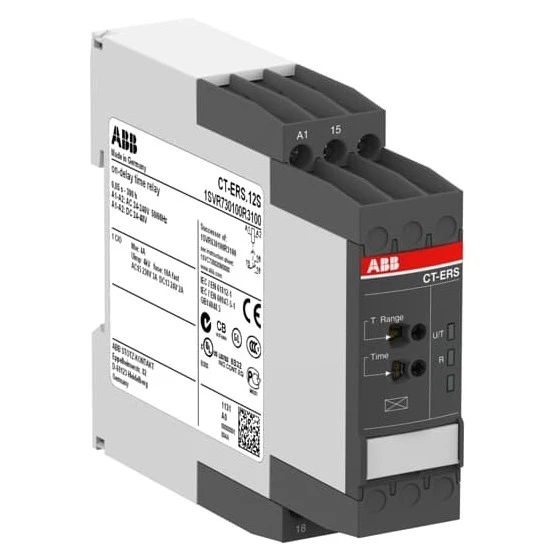

ABB CT-ERS.12S Time relay - ON-delay 1c/o - 24-48VDC - 24-240VAC
ABB CT-ERS.12S Time relay - ON-delay 1c/o - 24-48VDC - 24-240VAC
ABB CT-ERS.12S Time relay - ON-delay 1c/o - 24-48VDC - 24-240VAC - Image 2

ABB CT-ERS.12S Time relay – ON-delay 1c/o – 24-48VDC – 24-240VAC

£104.52 Incl. VAT

The CT-ERS.12S Is A Single-Function Electronic Time Relay From The CT-S Timer Range. It Provides An ON-Delay (Delay On Make) Function With 10 Time Ranges From 0.05 S To 300 H. This Time Relay Operates With A Rated Control Supply Voltage Of 24 – 48 V DC / 24 – 240 V AC And Has A 1 C/O (SPDT) Output Rated At 250 V / 4 A. A Sealable Transparent Cover For Protection Against Unauthorized Changes Is Available As Accessory. The Device Offers Screw Connection Technology With Double-Chamber Cage Connection Terminals. · · · Time Relay

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SVR730100R3100 Categories: , Brand: Product Code: 2501047349

Description

Technical Specifications  Technical Specifications Timer relay Nominal current 4 A Height 85.6 mm Width 22.5 mm Depth 103.7 mm Number of outputs, undelayed, normally open contact 0.00 Number of outputs, undelayed, normally closed contact 0.00 Number of outputs, delayed, normally open contact 0.00 Number of outputs, delayed, normally closed contact 0.00 Number of outputs, delayed, change-over contact 1 Number of outputs, undelayed, change-over contact 1 Rated control supply voltage at AC 50 Hz 24 – 240 V Time range 0.05 – 1080000 s Rated control supply voltage at DC 24 – 48 V Rated control supply voltage at AC 60 Hz 24 – 240 V Suitable for DIN rail (top hat rail) mounting Yes With semiconductor output No Pluggable on auxiliary contact block No Outputs, reversible delayed/undelayed No Function delay-on energization Yes Function floating contact on de-energization No Function star-delta No Function pulse shaping No Function flashing, starting with pause, fixed time No Function flashing, starting with pulse, fixed time No Clock function, starting with pause, variable No Clock function, starting with pulse, variable No Suitable as remote control No Function delay on de-energization No Function floating contact on energization No Remote operation possible No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581507 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581508 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581509 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581510 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581511
