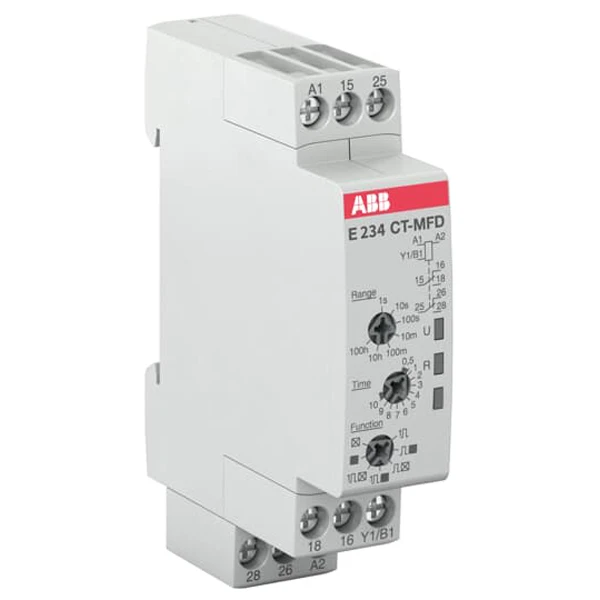

ABB CT-MFD.21 Time relay - multifunction 2c/o - 12-240VAC/DC
ABB CT-MFD.21 Time relay - multifunction 2c/o - 12-240VAC/DC

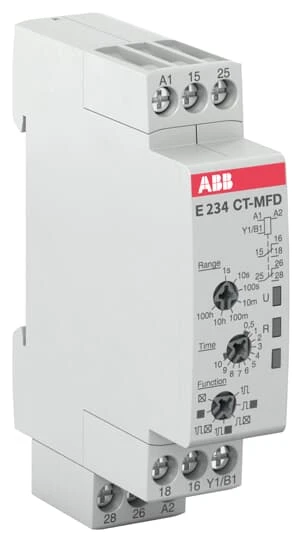

ABB CT-MFD.21 Time relay - multifunction 2c/o - 12-240VAC/DC - Image 2
ABB CT-MFD.21 Time relay - multifunction 2c/o - 12-240VAC/DC - Image 3
ABB CT-MFD.21 Time relay - multifunction 2c/o - 12-240VAC/DC - Image 4

ABB CT-MFD.21 Time relay – multifunction 2c/o – 12-240VAC/DC

£92.22 Incl. VAT

ABB 1SVR500020R1100 electronic timer with 2 c/o (SPDT) contacts. The CT-MFD.21 is a multifunction electronic time relay from the CT-D timer range. It provides 7 timing functions with 7 time ranges from 0.05s to 100h. This time relay operates with a rated control supply voltage of 12 to 240V AC/DC and has a 2 c/o (SPDT) output with contacts rated at 250V /5A. A control input works with voltage-related (non-floating) triggering. Multifunction timer with 7 timing functions such as ON-delay, OFF delay with auxiliary voltage, impulse-ON, impulse-OFF with auxiliary voltage, flasher starting with ON, flasher starting with OFF, pulse former. · · · Colour: Light Grey · · Height: 80mm · · Width: 17.5mm · · Weight: 66g · · Depth: 63mm · · Voltage Range: 12-240V AC / DC · · Switching Capability: SPDT

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SVR500020R1100 Categories: , , Brand: Part Number: 2500375423

Description

Technical Specifications  Technical Specifications Timer relay Nominal current 5 A Width 17.5 mm Depth 63 mm Height 80 mm Number of outputs, undelayed, normally closed contact 0.00 Number of outputs, undelayed, normally open contact 0.00 Number of outputs, delayed, normally closed contact 0.00 Number of outputs, delayed, normally open contact 0.00 Number of outputs, undelayed, change-over contact 2 Number of outputs, delayed, change-over contact 2 Time range 0.05 – 360000 s Rated control supply voltage at AC 50 Hz 12 – 240 V With plug-in socket No Function floating contact on de-energization Yes With semiconductor output No Remote operation possible No Suitable for front mounting No Suitable for DIN rail (top hat rail) mounting Yes Rated control supply voltage at DC 12 – 240 V Rated control supply voltage at AC 60 Hz 12 – 240 V Function pulse shaping Yes Pluggable on auxiliary contact block No Outputs, reversible delayed/undelayed No Function delay-on energization Yes Function delay on de-energization Yes Function floating contact on energization Yes Function star-delta No Function flashing, starting with pause, fixed time Yes Function flashing, starting with pulse, fixed time Yes Clock function, starting with pause, variable No Clock function, starting with pulse, variable No Suitable as remote control No · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581198 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581199 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581200 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581201 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581202 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581203 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581204 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581205 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581206 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1581207
