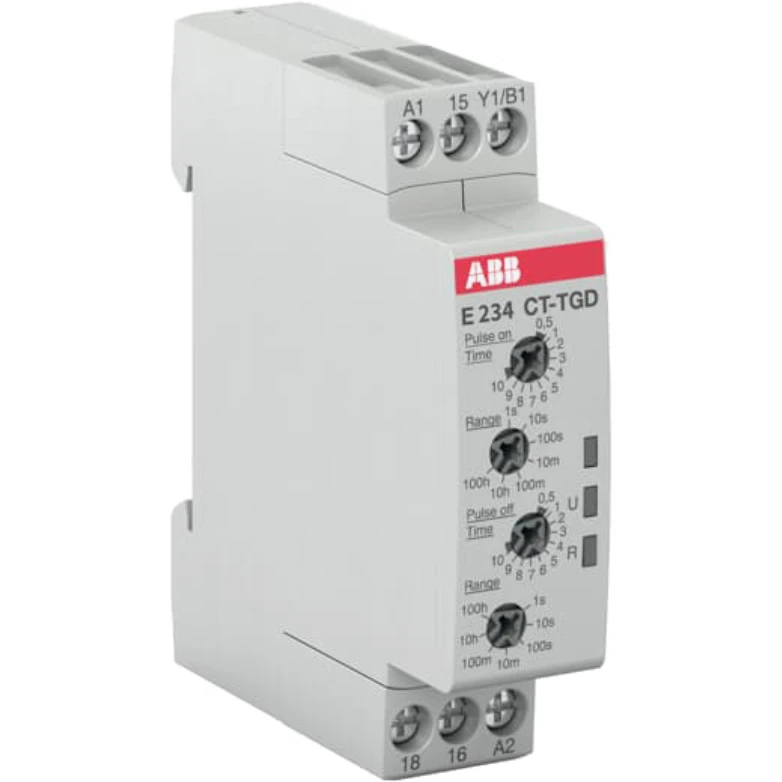

ABB CT-TGD.12 Time relay – pulse generator 1c/o – 24-240VAC 24-48VDC

£83.78 Incl. VAT

The CT-TGD.12 Is A Single-Function Electronic Time Relay From The CT-D Timer Range. It Provides A Pulse Generator (Recycling Unequal Times) Function With 2×7 Time Ranges From 0.05 S To 100 H. This Time Relay Operates With A Rated Control Supply Voltage Of 24 – 48 V DC / 24 – 240 V AC And Has A 1 C/O (SPDT) Output Rated At 250 V / 6 A. A Control Input Works With Voltage-Related (Non-Floating) Triggering. · · · Time Relay

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SVR500160R0000 Categories: , , , Brand: Product Code: 2500244788

Description

Technical Specifications  Technical Specifications Timer relay Width 17.5 mm Nominal current 6 A Height 70 mm Number of outputs, undelayed, normally closed contact 0.00 Number of outputs, undelayed, normally open contact 0.00 Number of outputs, delayed, normally closed contact 0.00 Number of outputs, delayed, normally open contact 0.00 Number of outputs, undelayed, change-over contact 1 Number of outputs, delayed, change-over contact 1 Depth 63 mm Time range 0.05 – 360000 s Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Rated control supply voltage at DC 24 – 48 V Function delay-on energization No Function delay on de-energization No Function floating contact on energization No Remote operation possible No Function floating contact on de-energization No Function star-delta No Function pulse shaping No Function flashing, starting with pause, fixed time No Function flashing, starting with pulse, fixed time No Clock function, starting with pause, variable No Clock function, starting with pulse, variable No Suitable as remote control No Suitable for DIN rail (top hat rail) mounting Yes With semiconductor output No Pluggable on auxiliary contact block No Outputs, reversible delayed/undelayed No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
