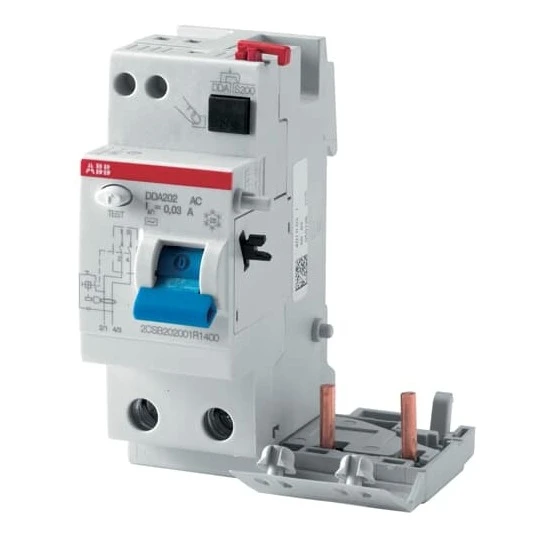

ABB DDA202 A-40/0.1 Residual Current Device Block
£189.49 Incl. VAT
The RCD Block DDA200 Series Is Suitable For Assembly With MCBs S200 Series. It Assures Protection Against The Effects Of Sinusoidal Alternating And Direct Pulsating Earth Fault Currents, Protection, Against Indirects Contacts And Additional Protection Against Direct (With Sensitivity = 30 MA) Contacts. Applications: Residential, Commercial, Industrial. · · · Residual Current Device Block · · 2 Pole · · 40 ampere
Out of Stock
Description
Technical Specifications Technical Specifications Residual current circuit breaker (RCCB) module Nominal current 40 A Rated insulation voltage Ui 500 V Number of poles 2 Max. delay time – ms Pollution degree – Surge current capacity – kA Rated impulse-withstand voltage (Uimp) 4 kV Nominal voltage 230 – 400 V Rated fault current 0.1 – 0.1 A Connectable conductor cross section multi-wired 25 – 25 mm² Connectable conductor cross section solid-core 25 – 25 mm² Ambient temperature during operating -25 – 55 °C With interlocking device Yes Delay adjustable No Anti-nuisance tripping version No Rated fault current adjustable No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1594487 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1594488 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1594489 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1594490
