ABB DDA204 A-40/0.03 Residual Current Device Block
ABB DDA204 A-40/0.03 Residual Current Device Block

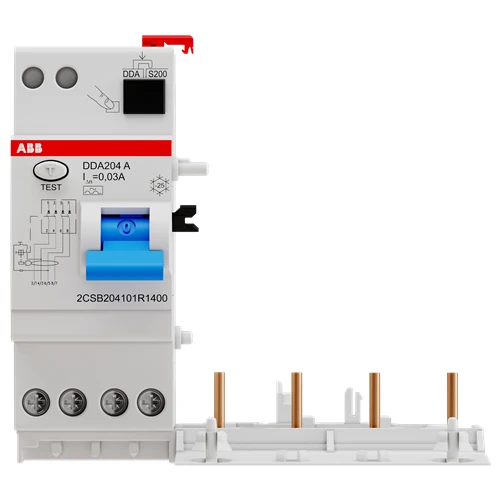

ABB DDA204 A-40/0.03 Residual Current Device Block - Image 2

ABB DDA204 A-40/0.03 Residual Current Device Block

£212.26 Incl. VAT

The RCD Block DDA200 Series Is Suitable For Assembly With MCBs S200 Series. It Assures Protection Against The Effects Of Sinusoidal Alternating And Direct Pulsating Earth Fault Currents, Protection, Against Indirects Contacts And Additional Protection Against Direct (With Sensitivity = 30 MA) Contacts. Applications: Residential, Commercial, Industrial. · · · Residual Current Device Block · · 4 Pole · · 40 ampere

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CSB204101R1400 Categories: , , Brand: Product Code: 2501055645

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) module Rated insulation voltage Ui 500 V Rated impulse-withstand voltage (Uimp) 4 kV Pollution degree – Surge current capacity – kA Max. delay time – ms Nominal current 40 A Number of poles 4 Nominal voltage 230 – 400 V Connectable conductor cross section solid-core 16 – 16 mm² Rated fault current 0.03 – 0.03 A Connectable conductor cross section multi-wired 16 – 16 mm² Ambient temperature during operating -25 – 55 °C Delay adjustable No Rated fault current adjustable No Anti-nuisance tripping version No With interlocking device Yes · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1594935 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1594936 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1594937 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1594938
