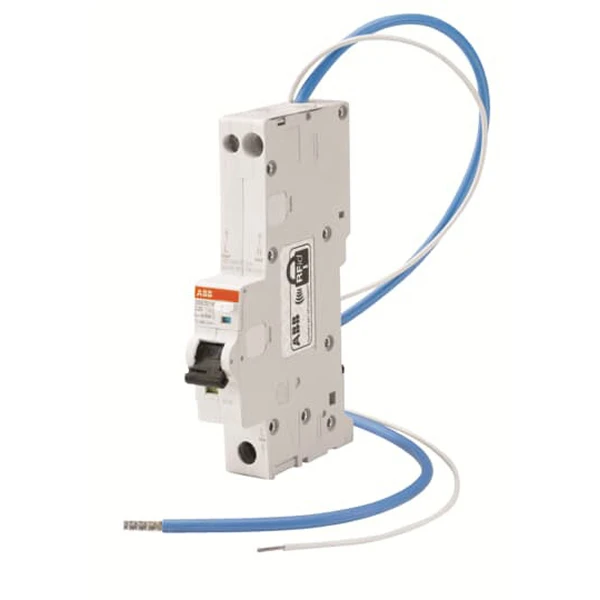

ABB DSE201 M C10 AC30 – N Blue Residual Current Circuit Breaker with Overcurrent Protection

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated current 10 A Rated voltage 240 V Recess depth 68.9 mm Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated short-circuit breaking capacity according to EN 61009 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 1 Over voltage category 3 Pollution degree 2 Number of poles (total) 2 Rated short-circuit breaking capacity IEC 60947-2 15 kA Current limiting class 3 Number of protected poles 1 Surge current capacity 0.25 kA Rated fault current 0.03 A Rated insulation voltage Ui 500 V Ambient temperature during operating -25 – 55 °C Connectable conductor cross section solid-core 35 – 35 mm² Connectable conductor cross section multi-wired 1 – 35 mm² Concurrently switching N-neutral No With interlocking device Yes Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1600313
