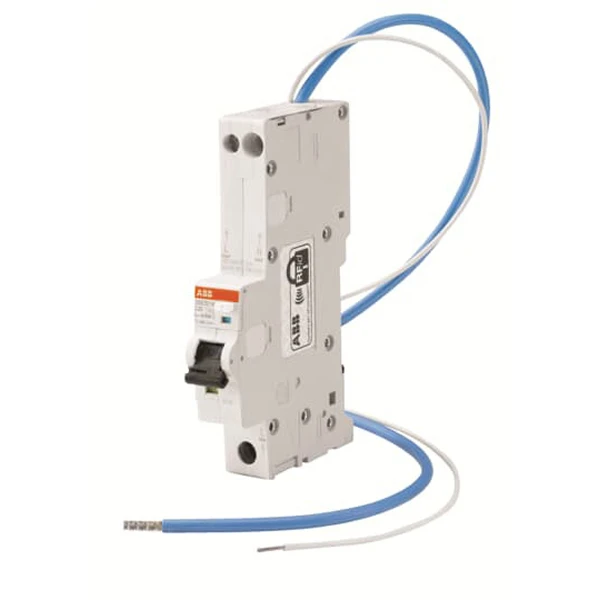

ABB DSE201 M C16 AC30 – N Blue Residual Current Circuit Breaker with Overcurrent Protection

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated current 16 A Recess depth 68.9 mm Pollution degree 2 Over voltage category 3 Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Number of poles (total) 2 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Surge current capacity 0.25 kA Rated short-circuit breaking capacity IEC 60947-2 15 kA Rated voltage 240 V Rated insulation voltage Ui 500 V Rated fault current 0.03 A Width in number of modular spacings 1 Rated short-circuit breaking capacity according to EN 61009 10 kA Ambient temperature during operating -25 – 55 °C Connectable conductor cross section solid-core 35 – 35 mm² Connectable conductor cross section multi-wired 1 – 35 mm² With interlocking device Yes Concurrently switching N-neutral No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1600315
