ABB E202/63R Switch Disconnector
ABB E202/63R Switch Disconnector

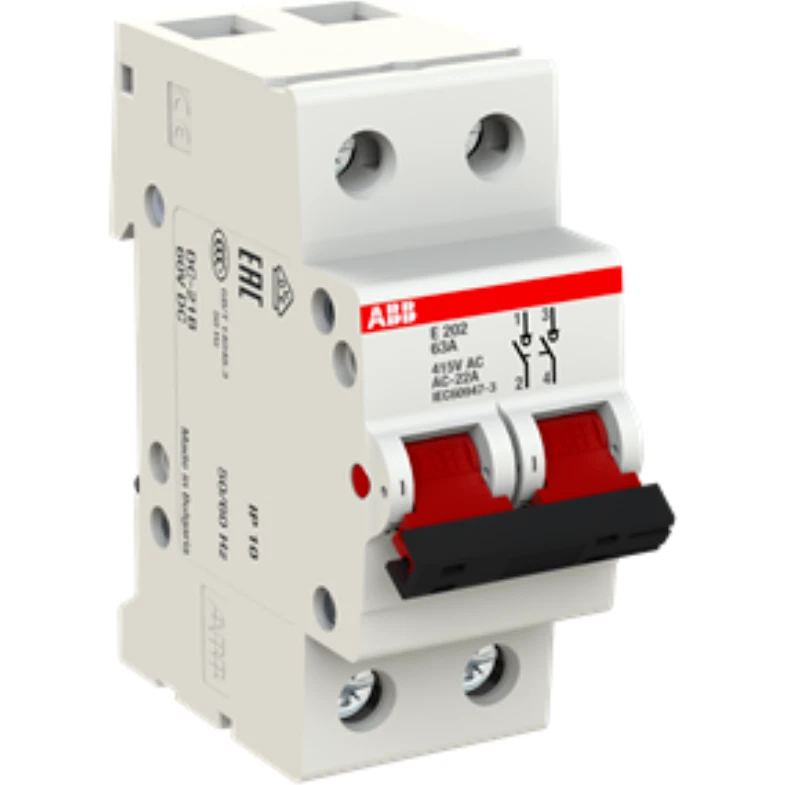

ABB E202/63R Switch Disconnector - Image 2
ABB E202/63R Switch Disconnector - Image 3

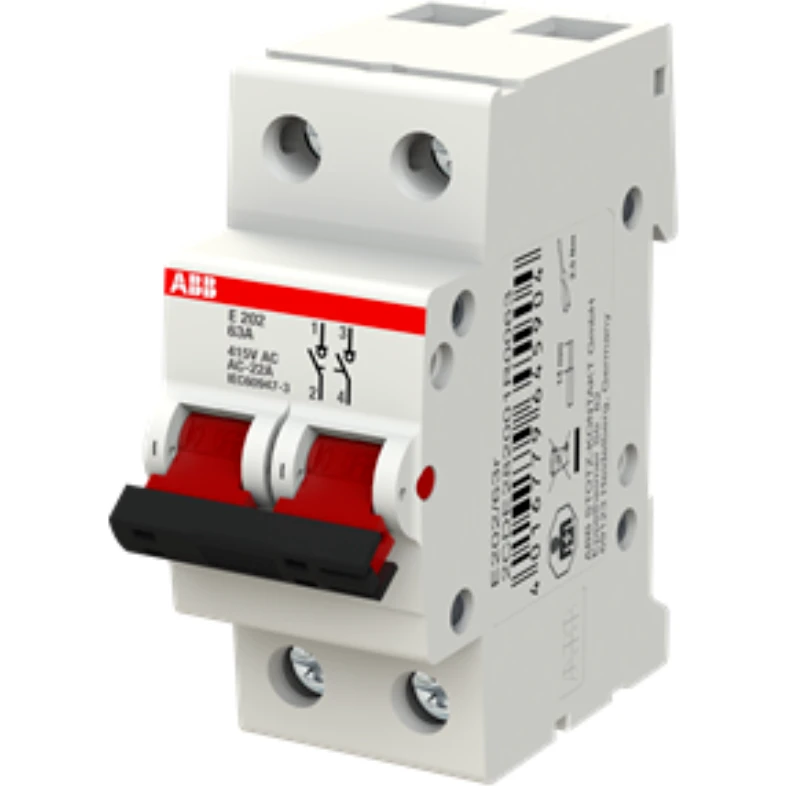

ABB E202/63R Switch Disconnector - Image 4

ABB E202/63R Switch Disconnector

£59.32 Incl. VAT

These Devices Are Suitable For Commanding Loads And They Are Realized According EN 60947-3 And EN 60669-1 Respectively. Fast Removal Without Dismantling Of The Busbar. Captive Screws With Recessed/Slotted Head. Pozidrive Size 2. Add-On Of Up To 3 Auxiliary Contact S2C-H6R Possible Integrated Lay-On Edge For Labeling System ILS. Locking Device As Accessories For Unauthorized ON/OFF. Approval: VDE, CCC, KEMA · · · Switch Disconnector · · (230 V AC) 7.5 kiloampere

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDE282001R0063 Categories: , Brand: Product Code: 2500242517

Description

Technical Specifications  Technical Specifications Main switch for distribution board Rated current 63 A Number of contacts as normally open contact 2 Rated voltage 400 V Number of contacts as change-over contact 0.00 Width in number of modular spacings 2 Number of contacts as normally closed contact 0.00 Rated switching capacity – kA Short-circuit breaking capacity (Icw) 25 kA Max. lamp power – W Recess depth 70 mm Number of poles 2 Min. rated voltage – V With indicator lamp No Forced segregation (according to DIN VDE 0113) No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1587162 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1587163
