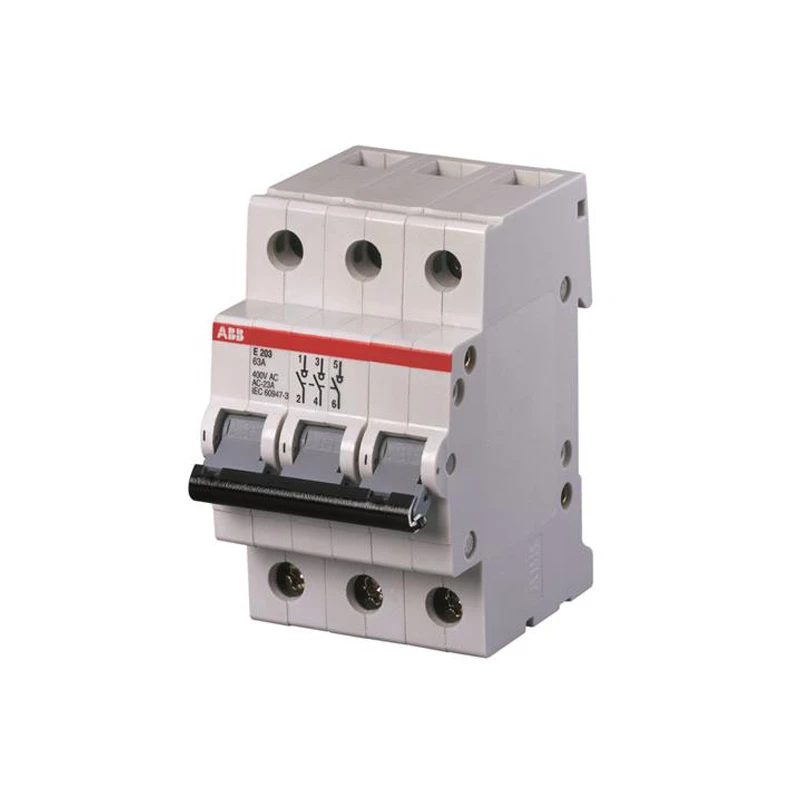

ABB E203/125R Switch Disconnector
ABB E203/125R Switch Disconnector
ABB E203/125R Switch Disconnector - Image 2

ABB E203/125R Switch Disconnector

£132.47 Incl. VAT

This Switch Disconnector is suitable for commanding loads and it is realized according EN 60947-3 and EN 60669-1 respectively. The locking device as accessories for unauthorized ON/OFF. . · · · Fast removal without dismantling of the busbar · · Captive screws with recessed/slotted head · · Red lever · · Pozidrive size-2 · · Add-on of up to 3 auxiliary contact S2C-H6R

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDE283001R0125 Category: Brand: Product Code: 2500178305

Description

Technical Specifications  Technical Specifications Main switch for distribution board Short-circuit breaking capacity (Icw) 6 kA Number of contacts as normally closed contact 0.00 Width in number of modular spacings 3 Number of contacts as normally open contact 3 Rated switching capacity – kA Max. lamp power – W Rated voltage 400 V Number of poles 3 Recess depth 70 mm Rated current 125 A Number of contacts as change-over contact 0.00 With indicator lamp No Min. rated voltage – V Forced segregation (according to DIN VDE 0113) No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1587200 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1587201
